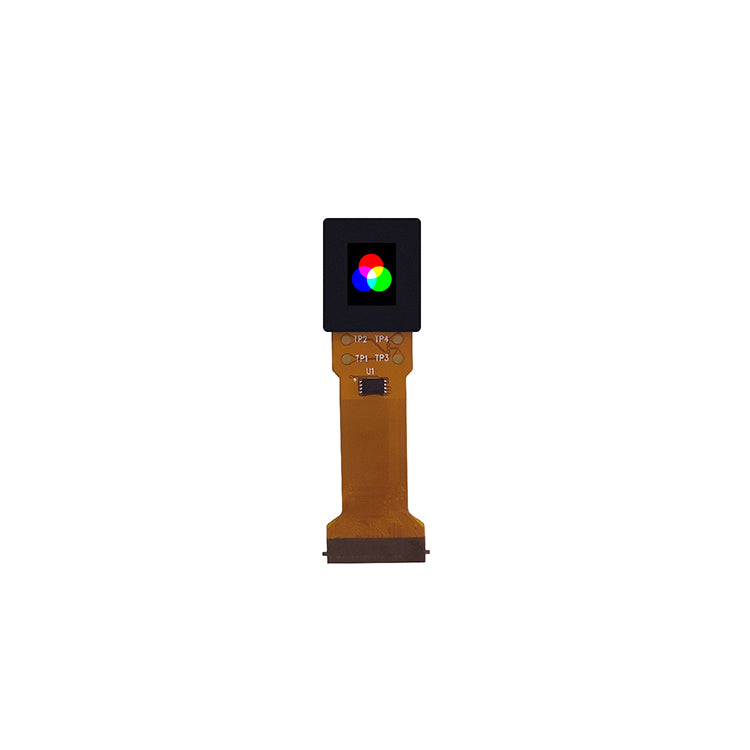

0.39 inch 1024x768 Micro OLED display with HDMI Board for AR/VR
Description
HICENDA'S LXR039XGA 1024×768 micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface. The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface. The LXR039XGA product has high contrast, high consistency and highlight performance.
Specification
| Parameter | Specification |
| Display Size | 0.39 inch |
| Model No. | LXR039XGA |
| Resolution | 1024 × 768 (Active Pixels: 1040 × 784) |
| Pixel Pitch | 7.8 μm × 7.8 μm |
| Pixel Array | RGB Vertical Stripe |
| Active / View Area | 8.1325 mm × 6.1779 mm (0.393" Diagonal) |
| Structure Size | 16.6 mm × 14.2 mm × 3.3 mm |
| Power Supply |
Digital Core: DC 1.8V @ Max 15mA OLED Array: DC 5.0V @ Max 150mA |
| Gray Level | Lv. 256 |
| Video Interface | 24bit RGB, 24/16bit YCbCr, 8bit Mono |
| Refresh Rate | 25 Hz ~ 120 Hz |
| Net Weight | 1 g |
| Operating Temperature | -40 ℃ ～ +65 ℃ |
| Storage Temperature | -55 ℃ ～ +90 ℃ |
| Contrast Ratio | > 10,000 : 1 |
| Luminance Uniformity | > 90% |
| Typical Luminance | 500 cd/m² |
Key features
High-Resolution Silicon-Based Microdisplay: Features a compact 0.39-inch active area with a high resolution of $1024 \times 768$ (XGA) for ultra-sharp, high-density visuals.
Plug-and-Play HDMI Driver Board: Comes integrated with an optical-grade HDMI controller board, allowing seamless video signal input and rapid prototyping for engineering projects.
Exceptional Optical Contrast & Brightness: Delivers a superior contrast ratio exceeding 10,000:1, vivid color saturation, and outstanding display uniformity for high-end optical systems.
Ultra-Low Power Consumption: Optimized CMOS backplane drive technology ensures high efficiency and low heat generation during continuous operation.
Wide Operating Temperature Range: Designed for reliability across demanding environments with an operating temperature range of -40°C to +65°C.
DRAWING &Interface Pin Function
