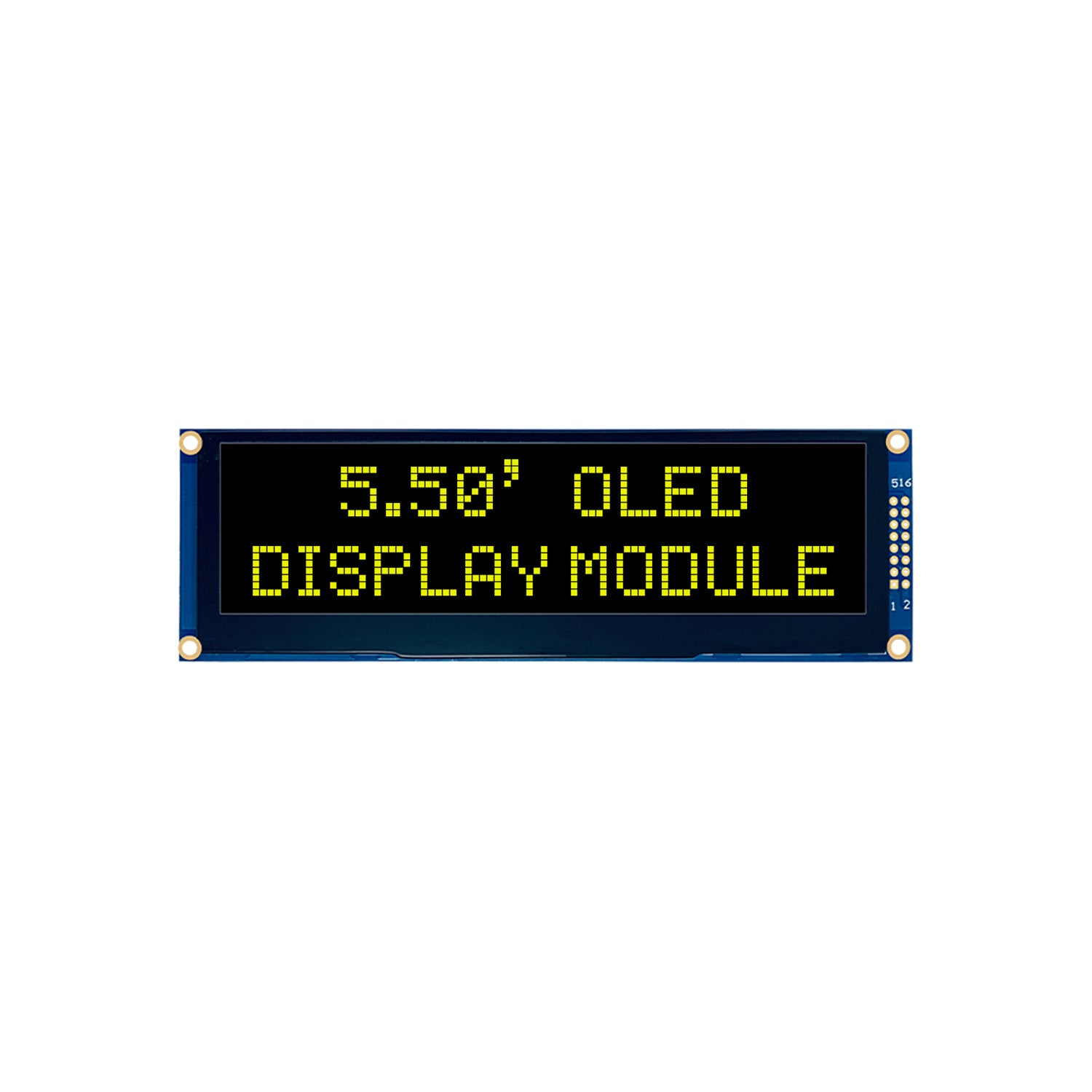

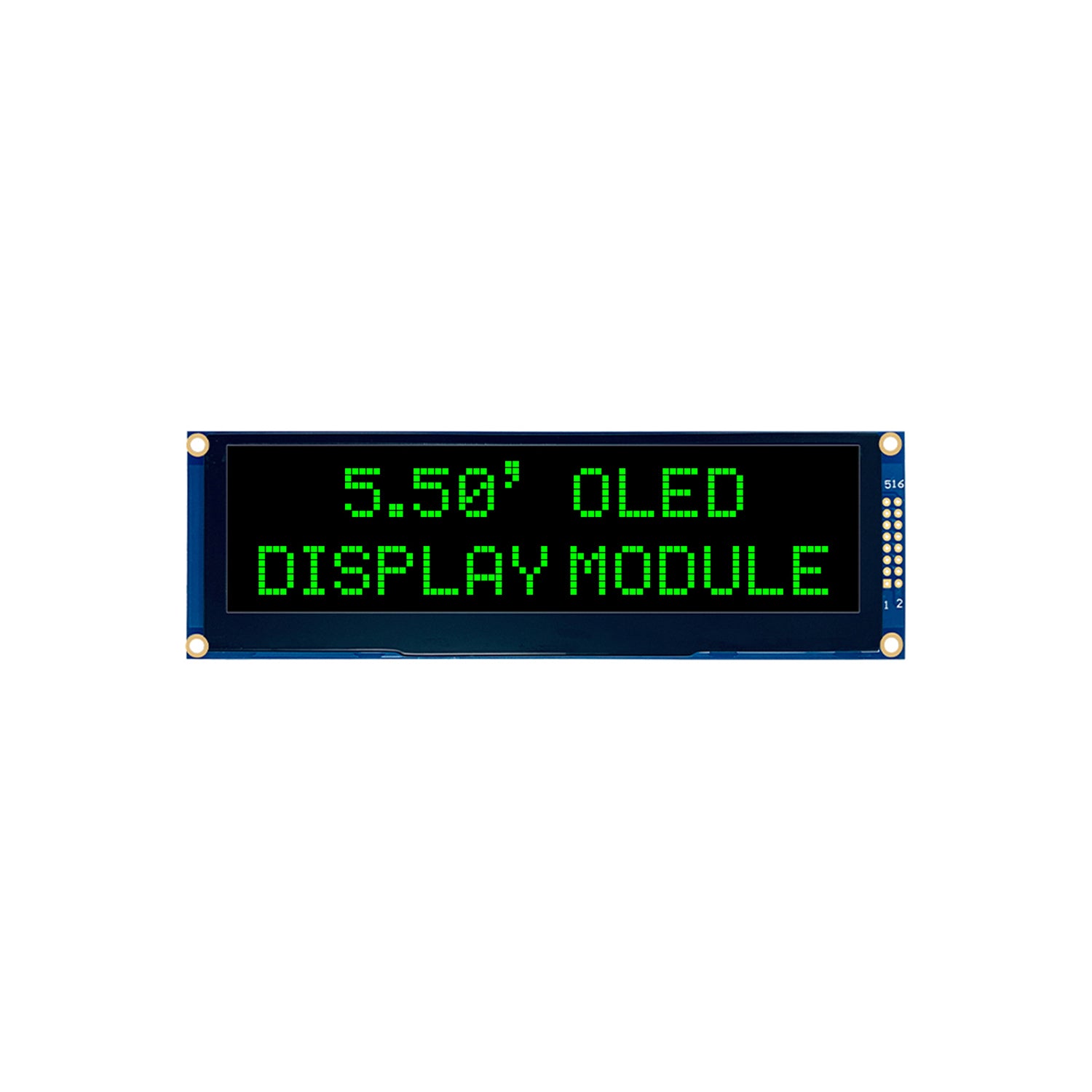

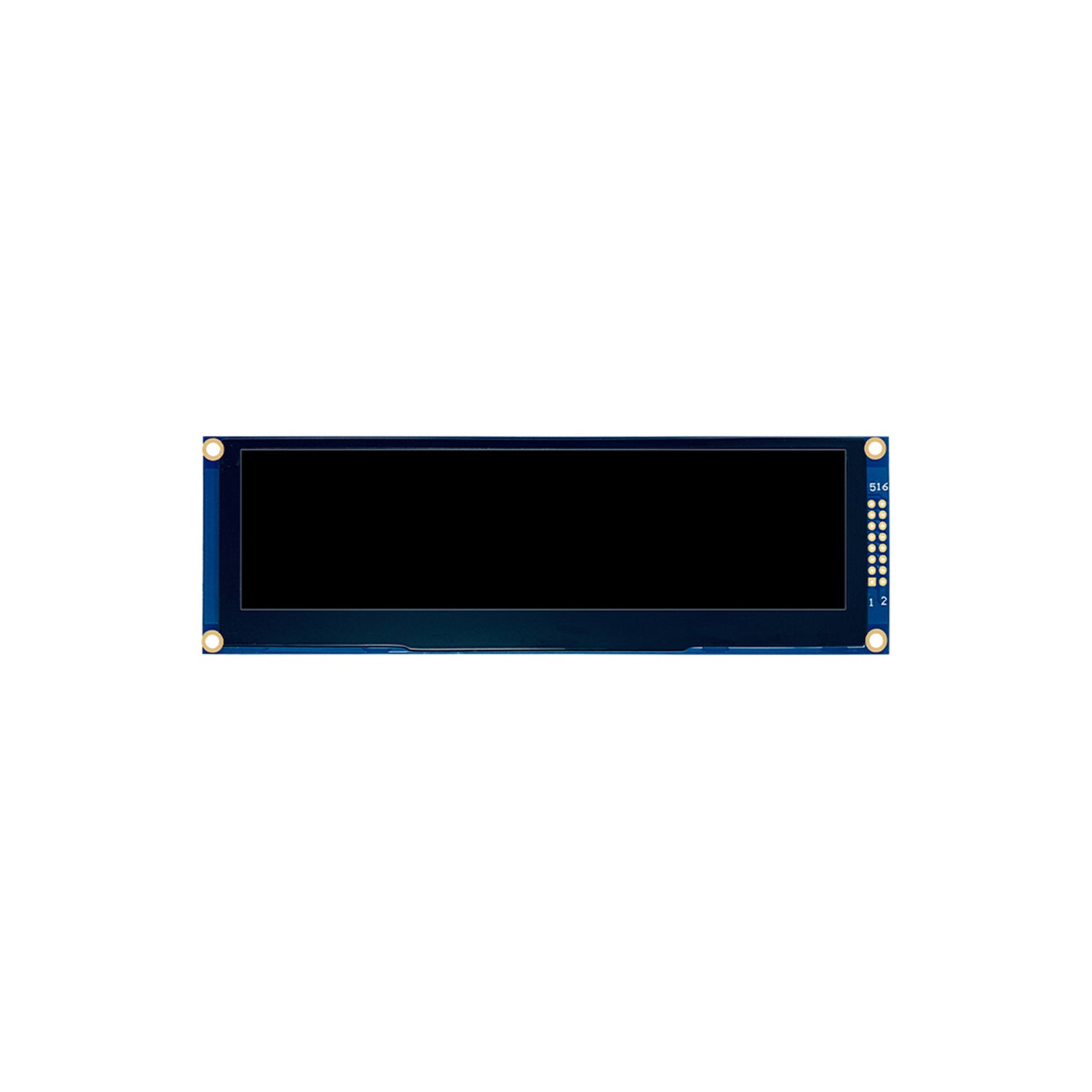

5.5 inch SSD1322 Graphic OLED Dispaly Module 256x64 SPI
Description
This Graphic OLED Display Module is with 5.5 inch, it offers a high resolution 256*64 pixels, delivering crisp text and graphics with perfect contrast,driven by the reliable SSD1322 controller.
this SPI ssd1322 OLED Module supports multiple interfaces including 3-wire/4-wire SPI and 8-bit parallel. thanks to its self-emissive property, wide viewing angles, and wide operating temperature range, it is the ideal drop-in display solution for industrial control panels, audio equipment, racks, and medical instruments.
Specifications
| Parameter | Specification |
|---|---|
| Display Type | Graphic OLED Display |
| Display Size | 5.5 Inch |
| Resolution | 256×64 Dots |
| Driver IC | SSD1322 |
| Interface | 8-bit 68XX/80XX Parallel, 4-wire SPI, 3-wire SPI |
| Display Color | Yellow / White / Green |
| Color Depth | 16.7M (24-bit) |
| Viewing Direction | All Viewing Angles |
| Outline Dimension | 159.33 × 49.8 × 6.3 mm |
| Viewing Area | 137.65 × 35.89 mm |
| Pixel Size | 0.28 × 0.28 |
| Pixel Pitch | 0.30 × 0.30 |
| Pin Number | 16 Pins |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -45℃ to +90℃ |
Features
No Backlight Required: As a self-luminescent display, it features lower power consumption and an ultra-thin profile compared to traditional LCDs.
Extreme Temperature Resilience: Reliable performance in harsh environments from -40℃~+85℃
Wide Viewing Angle: Offers >160° visibility with sharp readability from any direction.
