1.03 inch high resolution micro oled display 2560*2560 mipi dsi interface oled
Description

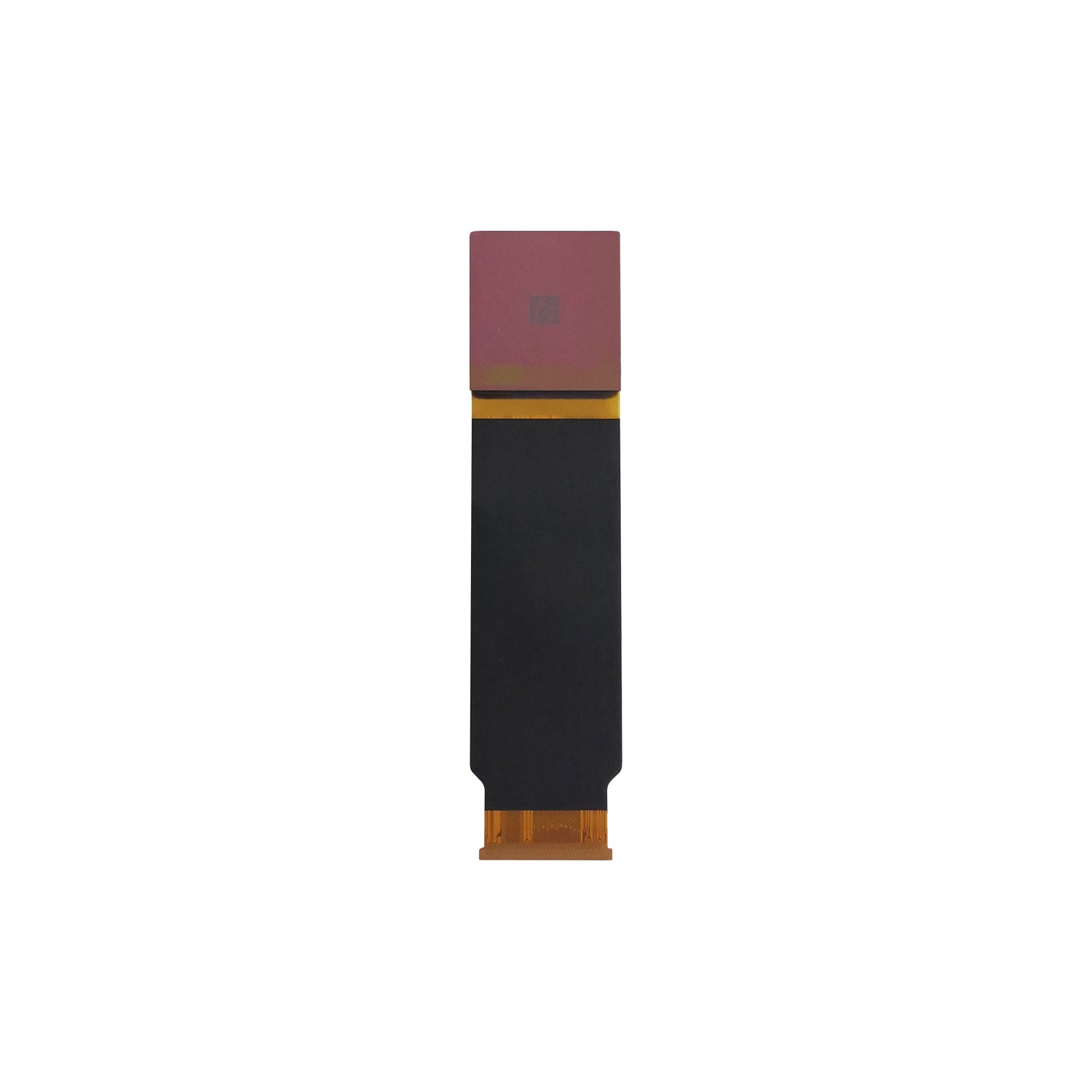

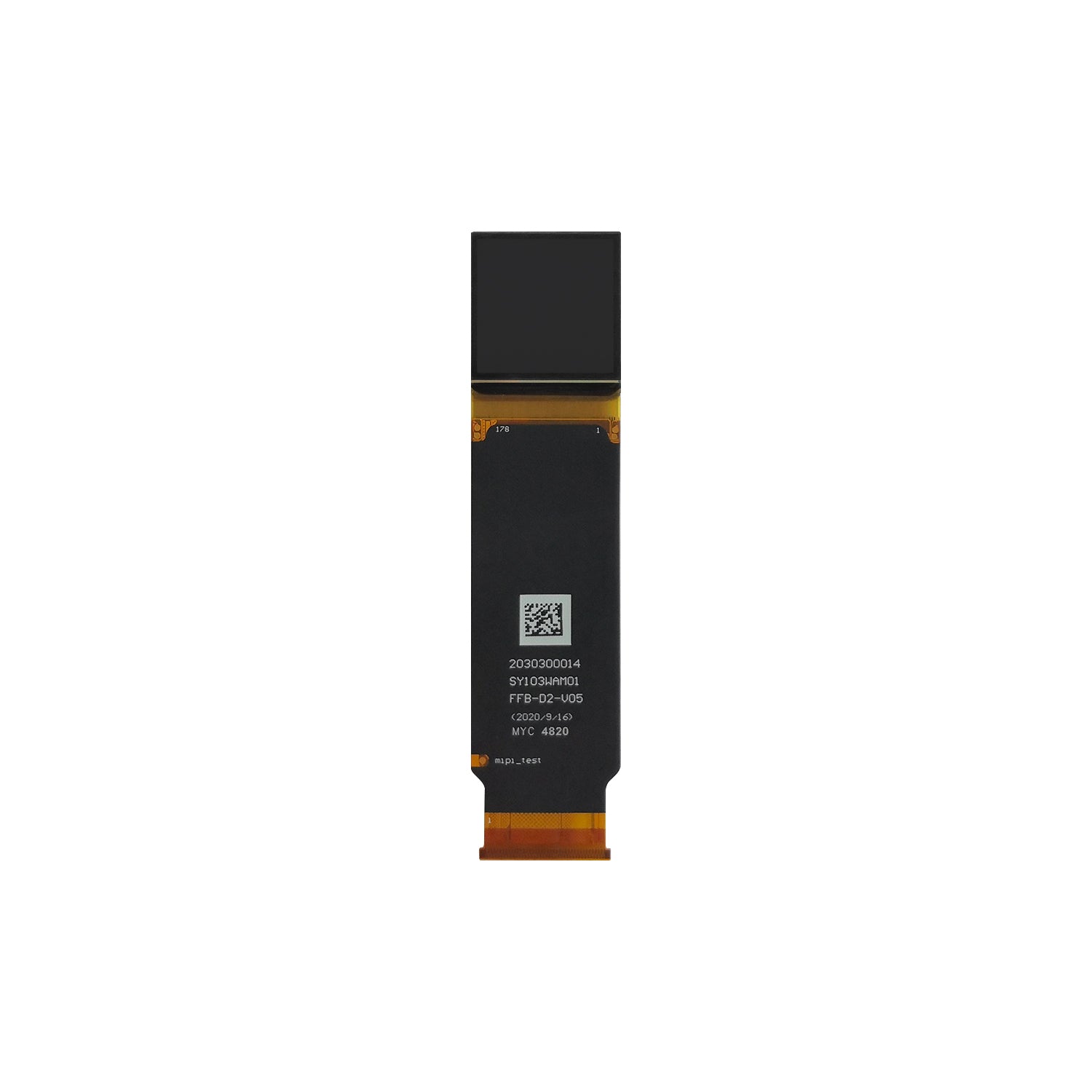

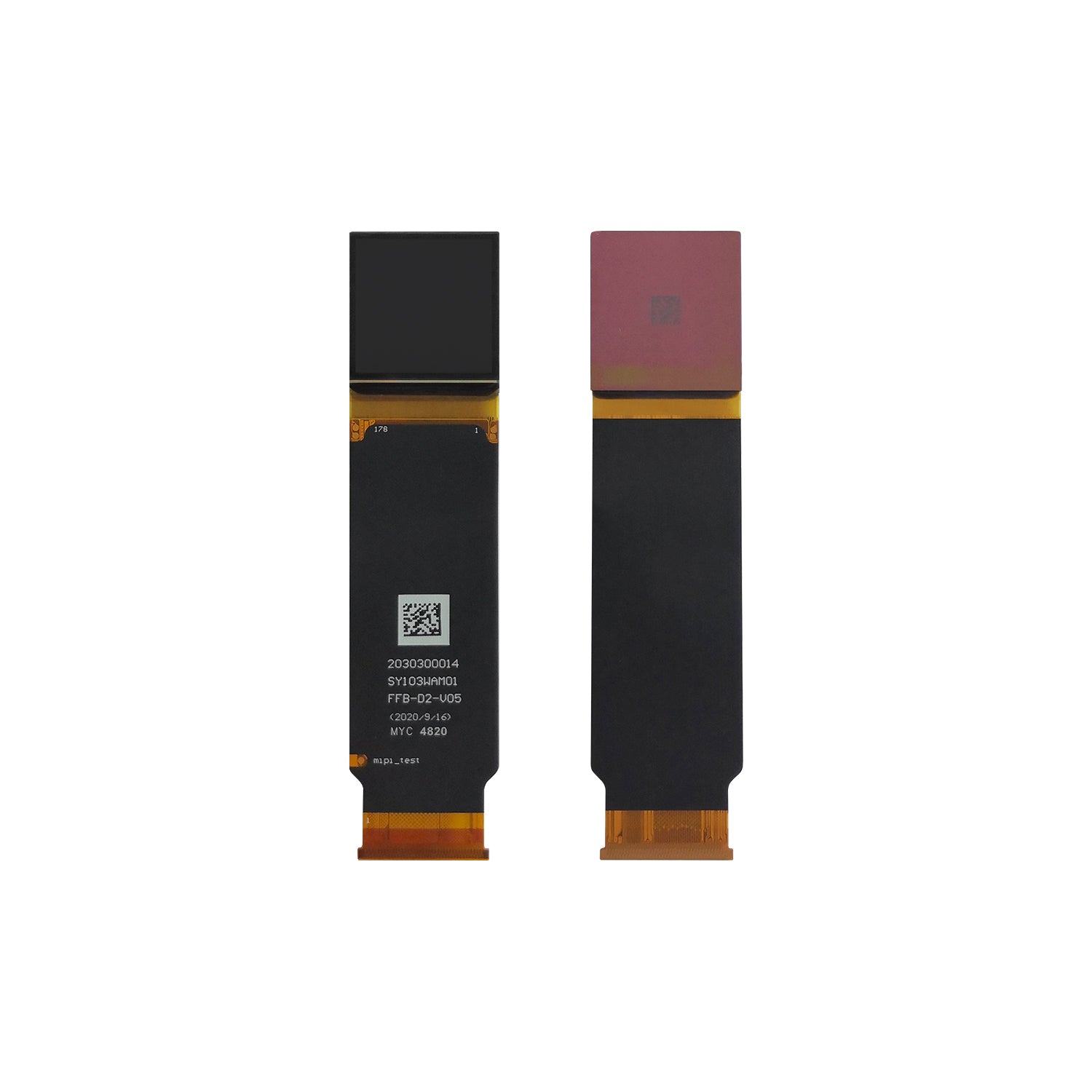

This display is a 1.03 inch diagonal, 2560(RGB) × 2560 dots active matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.
Applications: View finders, Head mounted displays, etc.
PS:Please kindly contact us for full data sheet of display
| Parameters | Specification |
| Size | 1.03 inch |
| Resolution | 2560*2560 dots |
| Pixel Size | 7.2μm x 7.2μm |
| Active Area | 18.432mm x 18.432mm |
| Brightness | 1800cd/m² typical |
| Contrast Ratio | 500,000:1 typical |
| Operating Voltage |
VDDI=1.8V +/- 10% AVDD=5V~6V AVEE=-4V~-6V VDD=1.2V |
| Interface | MIPI (1-port C-PHY/2-port D-PHY) |
| Frame Rate | 90Hz |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
Features:
2560 x2560 Real RGB Resolution
Peak Brightness 3000nits
AP Operated Resolution
-2560 x2560:(8 x M, M=160~320)x RGB x (8 x N,N=90~320)
Frame rate:
-1920 x1920 input, x1.33scaling up to 2560 x2560, VESA DSC on, maximum 90Hz-2560 x2560,input, x1scaling up , VESA DSC on, maximum 75HzNormal operation supports full color mode: 16.7M colorsInterface
-MIPII +12C
. MIPI DPHY v1.2 with one /two port (4/8 lanes), 1.0Gbps/Lane
- MIPI DSl v1.01 R11 Video mode
-Support VESA-DSC v1.1 in-chip decoder(3X compression ratio)-Support scaling up 1.33x(1920x1920 to 2560 x2560) and 2x(1280x1280 to 2560x 2560)Scan direction selection, up ordown and right orleft
Orbit supported
Wide range Brightness adjustment
Sequential/Global emission
Temperature compensation
Drawing
Pin Definition:
