6.67 inch MIPI Flexible 2400x1080 OLED Touchscreen Curved Display Module

Los gastos de envío se calculan en la pantalla de pago.

Description

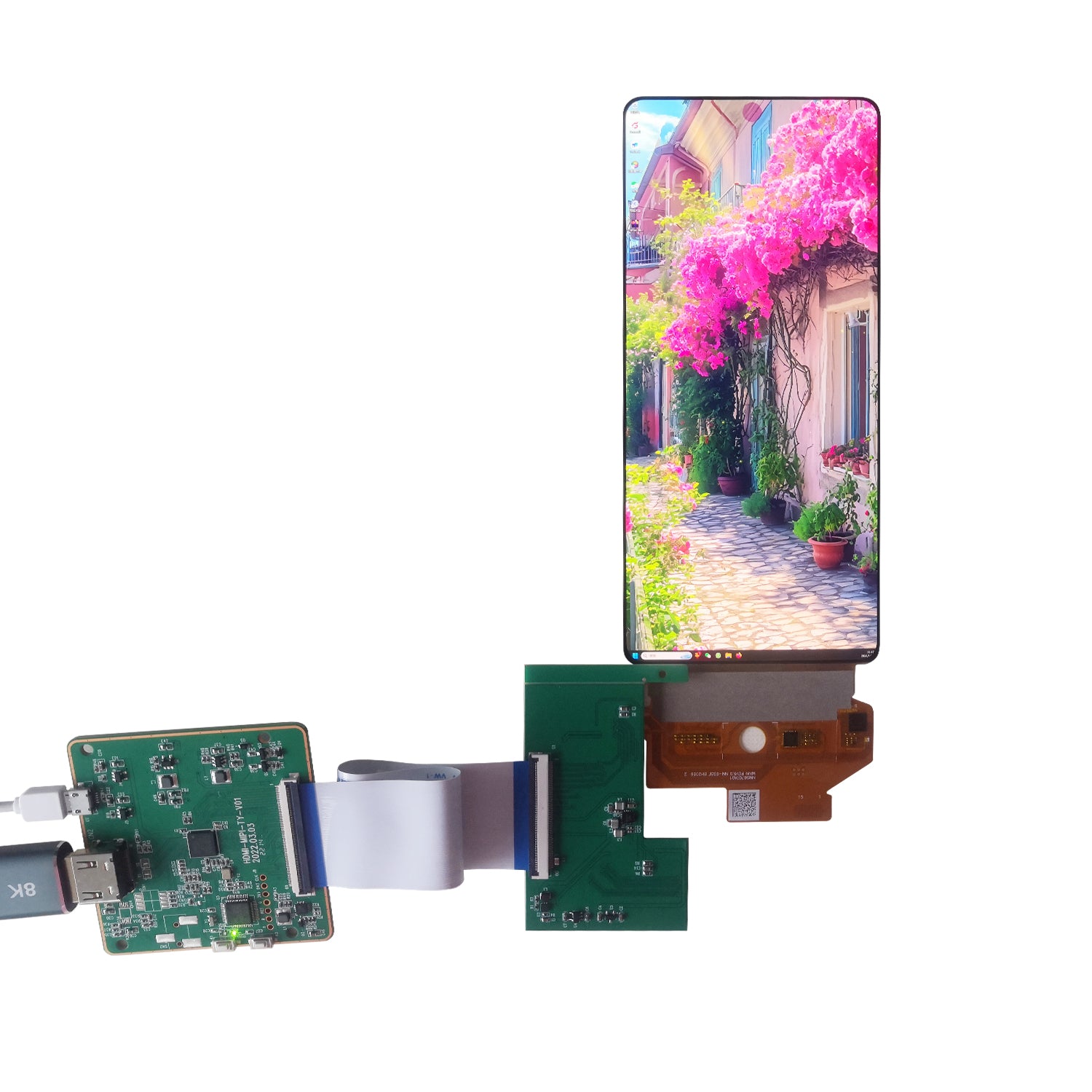

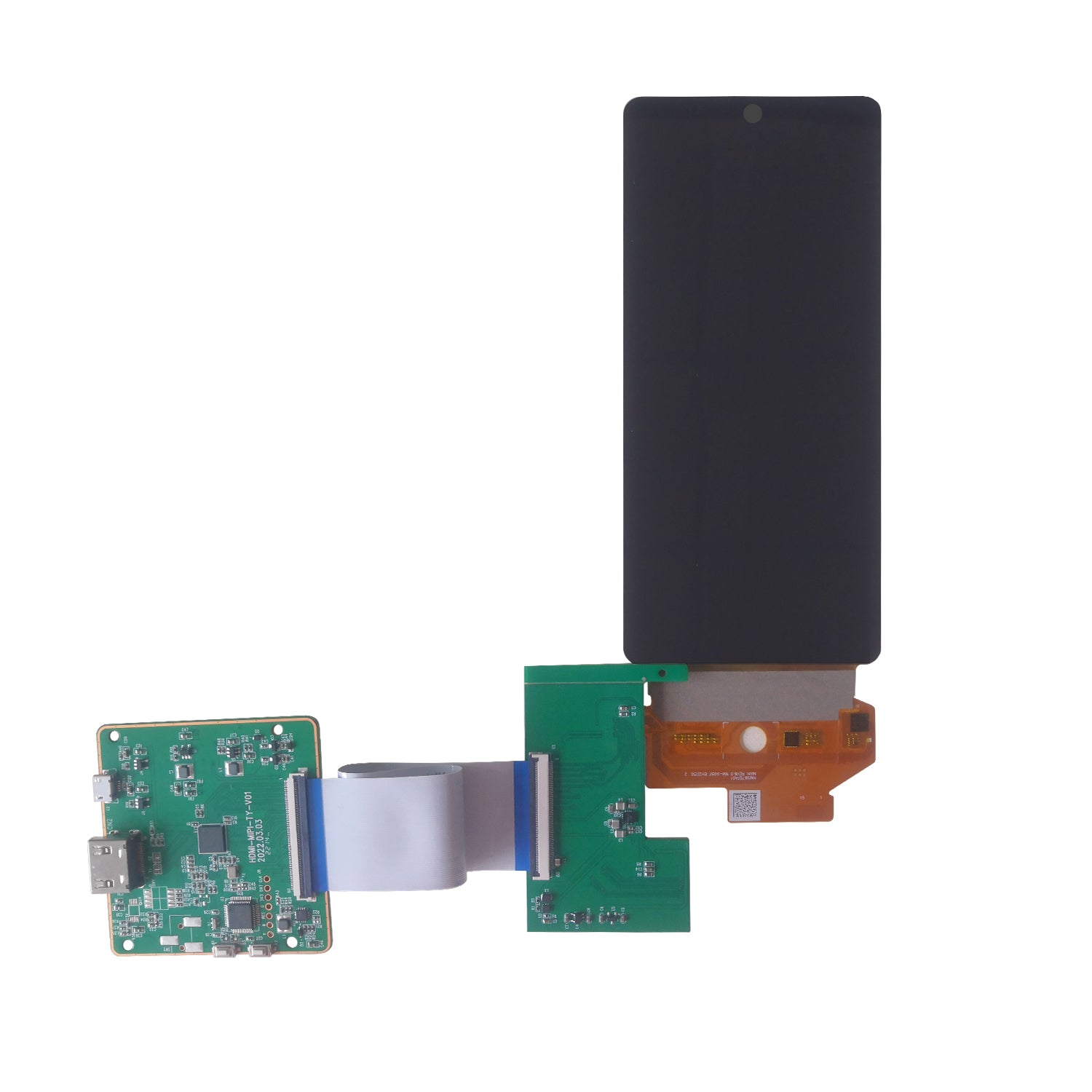

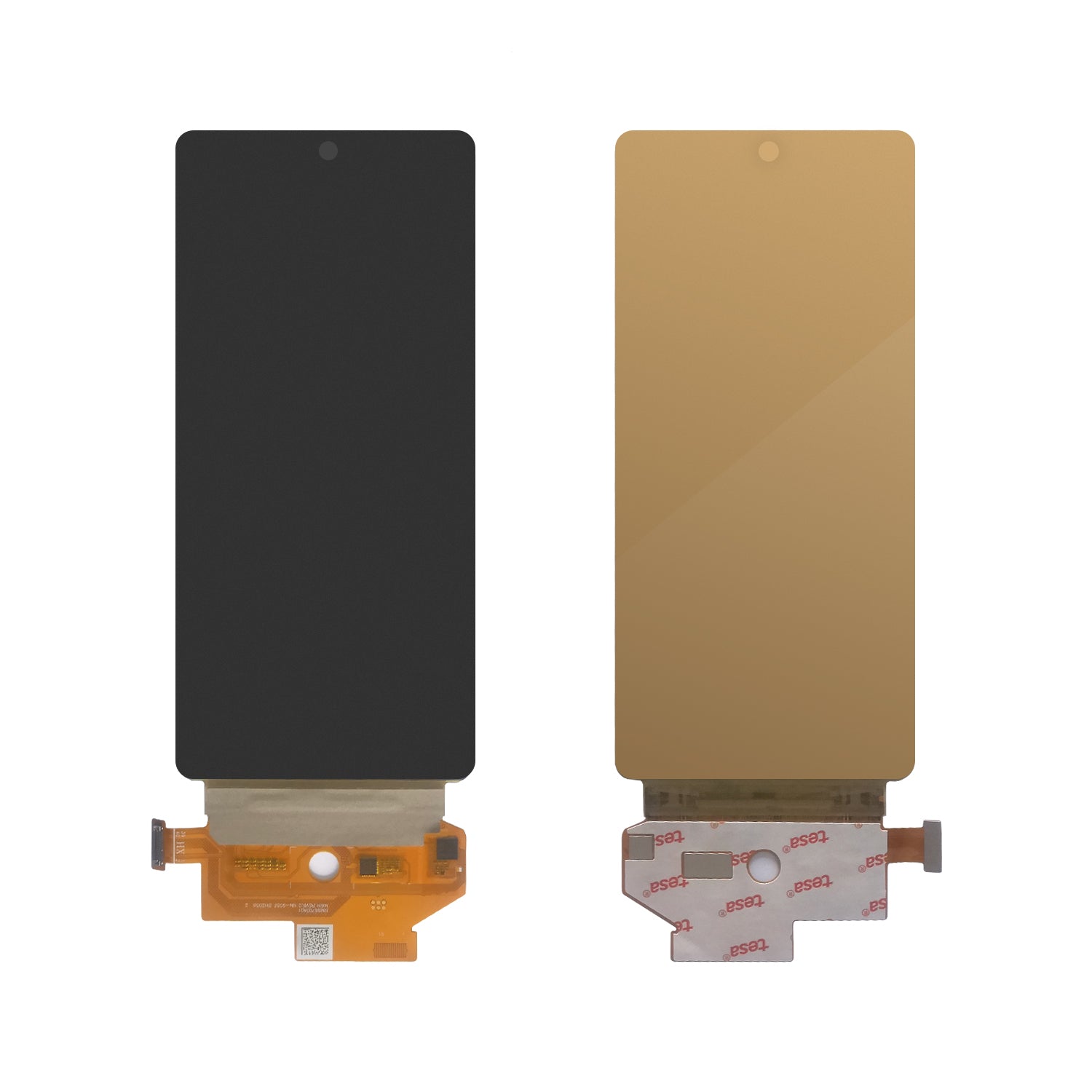

6.67 inch flexible AMOLED display panel integrates FHD+ 2400×1080 resolution,equipped with the VTDR6130 driver IC and FT3658U touch controller, the 2400x1080 flexible AMOLED display panel supports MIPI display communication and IIC touch transmission,With its flexible AMOLED structure and this bendable OLED display is used for many kinds of applications like smartphones, intelligent handheld terminals...



Specifications

Parameter Specification
Display Type Flexible AMOLED
Display Size 6.67 Inch
Resolution 2400 × 1080 (FHD+)
Display Format 2400RGB × 1080
Aspect Ratio 20:9
Color Support Full Color
Color Depth 16.7M Colors (24-bit)
Viewing Direction All Viewing Angle
Frame Rate 60Hz
Driver IC VTDR6130
Touch IC FT3658U
Driver IC Location COP
Touch IC Location FPC
Display Interface MIPI
Touch Interface IIC
Outline Dimension 165.16 × 71.532 mm (Before Bending)
Active Area 154.56 × 69.552 mm
Pin Count 40 Pins
Touch Panel Integrated
Operating Temperature -20℃ to +80℃
Storage Temperature -40℃ to +80℃



Key Features

  • Stunning FHD+ Visuals: 2400x1080 resolution ensures crisp images, sharp text, and an immersive viewing experience.

  • Flexible & Bendable Design: Perfect for curved, foldable, or wrap-around applications without compromising display quality.

  • AMOLED Technology: Offers independent pixel illumination, resulting in true blacks, vibrant colors, and lower power consumption.

  • Wide Viewing Angles: Maintains color accuracy and brightness even when viewed from extreme angles.



Applications

This premium flexible display module is ideal for a wide range of innovative industries:

  • Smart Wearables: High-end smartwatches, health monitors, and curved wrist devices.

  • Consumer Electronics: Foldable smartphones, dual-screen laptops, and innovative handheld consoles.

  • Smart Home & IoT: Curved control panels, smart mirrors, and luxury home automation interfaces.

  • Automotive Displays: Flexible dashboards, center consoles, and rear-seat entertainment screens.
