12.3 inch Stretched Bar LCD 1920x720 HDMI
Description

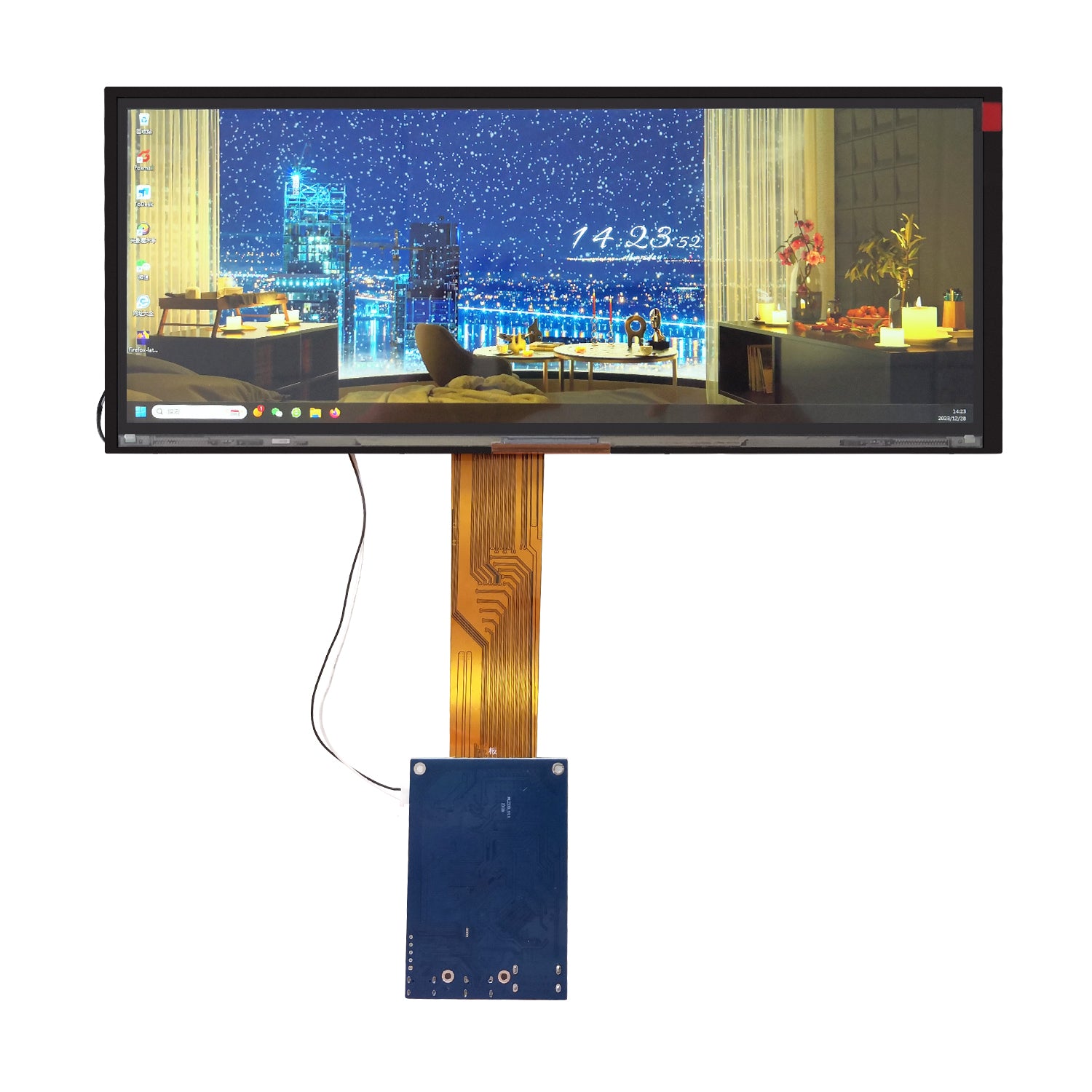

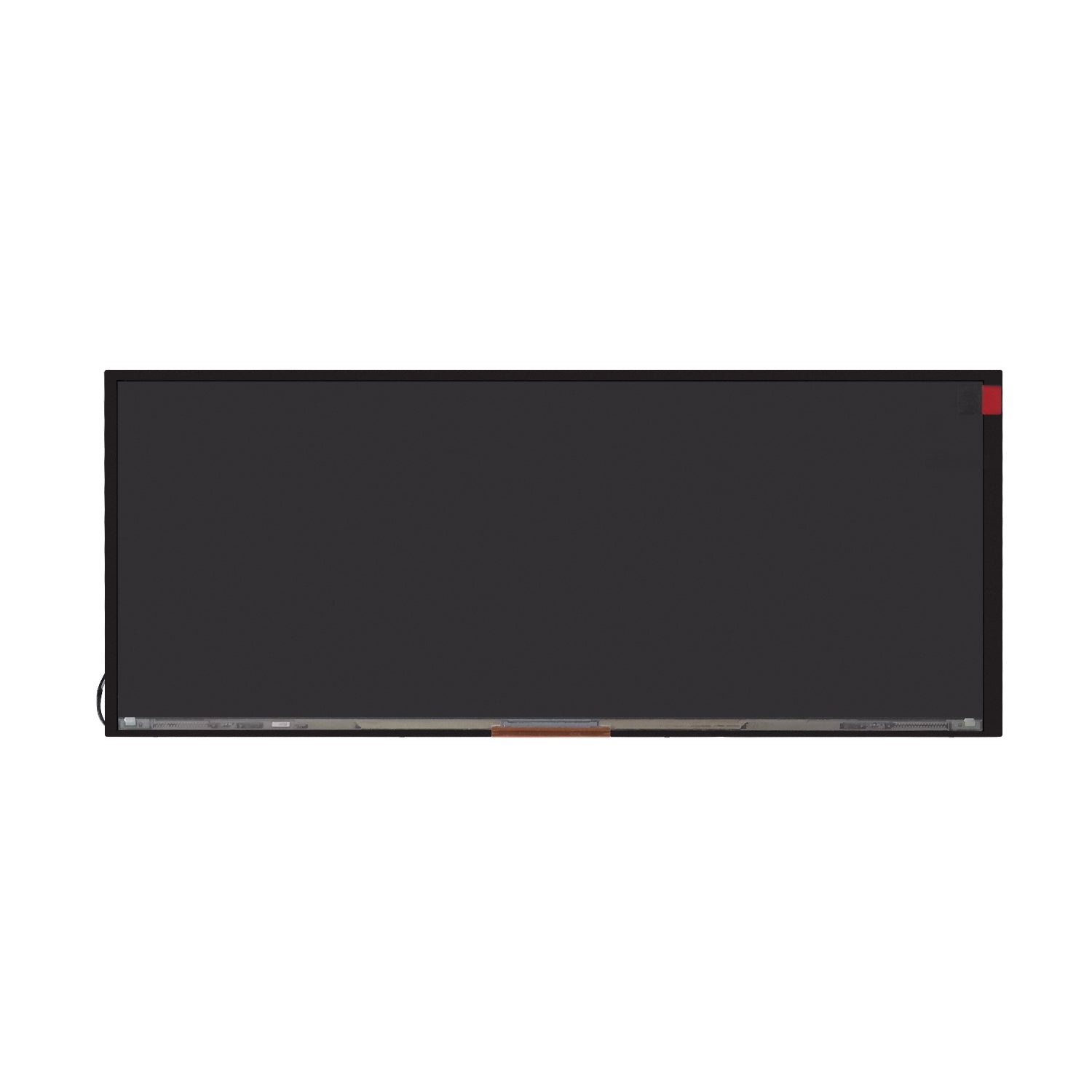

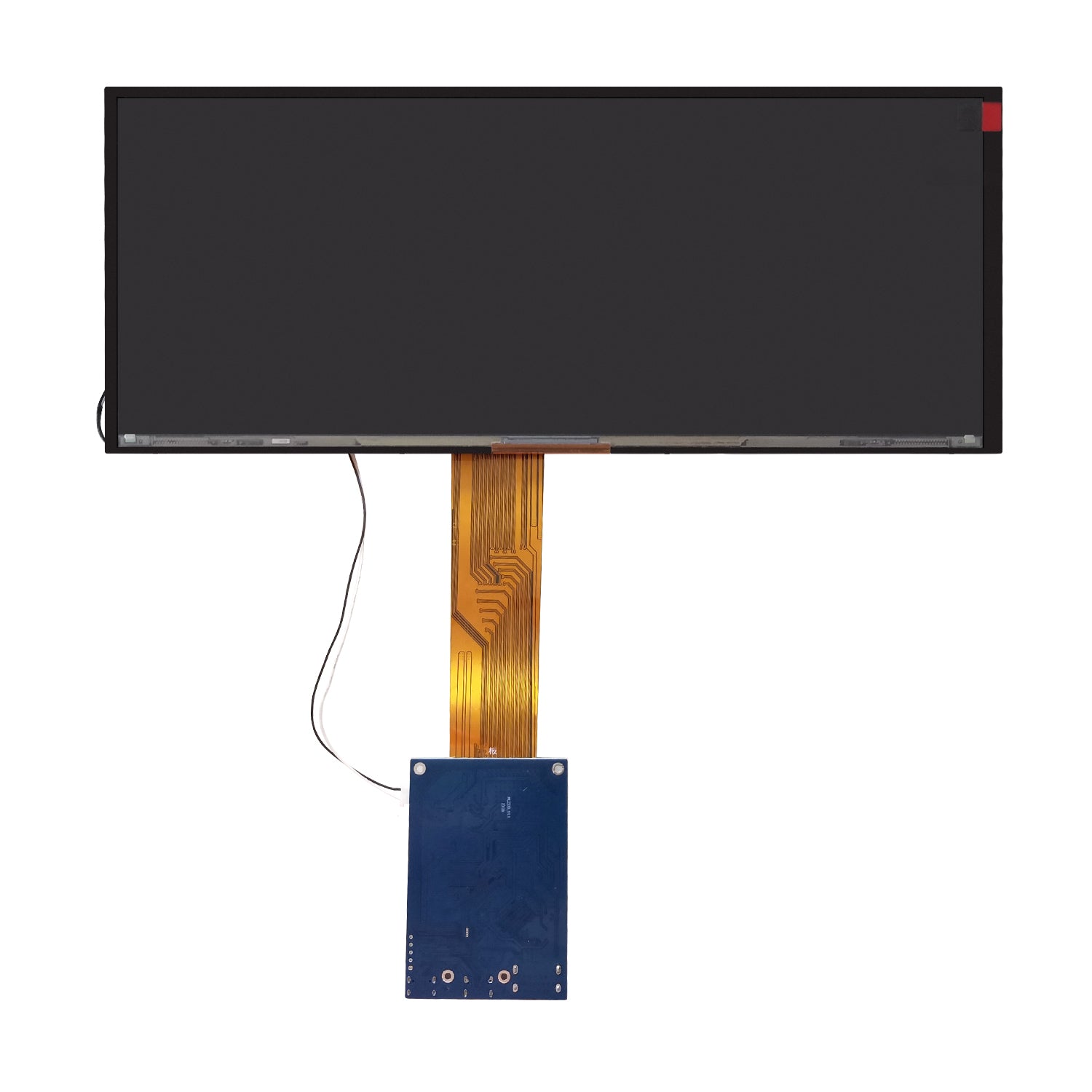

This 12.3 inch IPS Stretched bar type LCD display Display Module, this in-cell touch is with 1920x750 high resolution and 930nits high brightness, supports 2 port LCDS interface and with Plug and Play HDMI board, is perfect for raspberry pi,arduino,PC case sub-screen, car dash....
Specification
| Parameter | Specification |
|---|---|
| Display Size | 12.3 inch (Diagonal) |
| Resolution | 1920 × 720 |
| Display Mode | Normally Black |
| Display Technology | a-Si TFT |
| Color Support | 16.7M Colors (24-bit) |
| Pixel Configuration | RGB Vertical Stripe |
| Viewing Direction | Full Viewing Angle |
| Brightness | 930 cd/m² |
| Contrast Ratio | 1200:1 |
| Interface | Dual-Port LVDS |
| Touch Technology | In-cell Capacitive Touch with TDDI |
| Surface Treatment | AG / AR / AF / HC |
| Outline Dimensions | 325.86 × 139.21 × 8.2 mm |
| Active Area | 292.032 × 109.512 mm |
| Pin Count | 70 Pins |
| Power Consumption | 16.3W Max |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Weight | 510g ±10% |
Key Features
Advanced In-Cell Touch Technology: Unlike traditional touchscreen monitors that use an extra layer of overlay touch glass, our cutting-edge In-cell touch sensor is integrated directly inside the LCD module. This seamless design removes extra bulk, making the display ultra-thin, lightweight, and perfect for tight spaces.
Premium Optical Clarity & Anti-Glare (Zero Air Gap): The full-lamination In-cell structure eliminates the air gap between the display panel and the touch layer. This significantly reduces ambient light reflections, providing crystal-clear visuals, enhanced contrast, and superior readability—even under direct sunlight or bright automotive conditions.
Ultra-Responsive Multi-Touch Control:Enjoy a smooth, smartphone-like touch experience. The built-in capacitive touch layer ensures zero latency, high sensitivity, and pinpoint accuracy for fluid swiping and tapping.
Specialized 1920x720 Ultrawide Elongated Profile:Designed specifically for unique bar-type and stretched-ratio applications. It slides effortlessly into compact environments where standard 16:9 displays simply cannot fit.

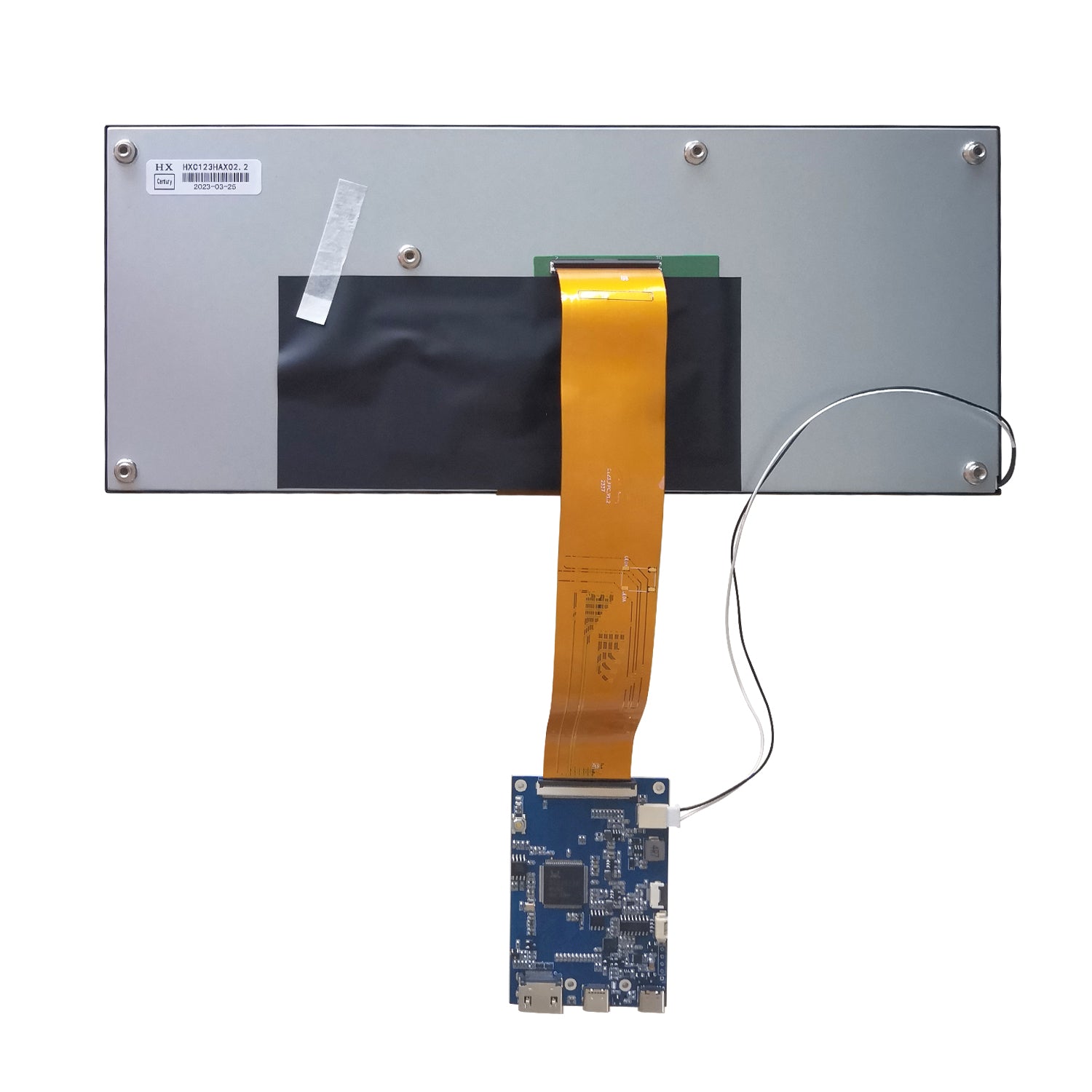

Instant Plug-and-Play HDMI Connectivity:Equipped with a custom-engineered HDMI driver board. Enjoy driver-free setup and instant configuration on modern operating systems without complex coding or firmware work.
Versatile Cross-Platform Compatibility:The ideal choice for PC chassis modding (fully compatible with AIDA64 hardware monitoring), DIY car dashboard upgrades, smart digital signage, and single-board computers like Raspberry Pi
