0.6" SVGA Micro OLED Display 800x600 for Night Vision Thermal Scopes
The HG060SVGA series are AMOLED micro display products prepared by topemission,high-efficiency,silicon-based active OLED technology with independent intellectual property rights.
the 800x600 Microdisplay Module is with features of low power consumption,high resolution (SVGA 800×600),miniaturization and etc,which support resolution requirements for SVGA and below.with the appropriate optical system,high quality large screen display effect can be obtained, ideal for thermal imagers, night vision goggles, and HMDs.
Specification
| Specification | Value |
|---|---|
| Model No | HG060SVGA |
| Display Size | 0.6 inches |
| Resolution | 800 × 600 (RGB vertical stripe) |
| Active Pixels | 800 × 604 |
| Luminance | 200cd/m² (Color), 500cd/m² (Mono White), 10000cd/m² (Mono Green) |
| Pixel Size | 15µm × 15µm |
| Pixel Array | RGB Vertical Stripe |
| Active Area | 12.06 mm × 9.06 mm (Diagonal: 0.60") |
| Gray Level | 256 |
| Interface | MIPI (1 lane) + I²C |
| Contrast Ratio | >10,000:1 |
| Life (T90) | 500 hours @ 3000 cd/㎡; 600H@ 6000 cd/㎡; 600H@ 10000 cd/㎡ |
| Operating Temperature | -40℃ to +65℃ |
| Storage Temperature | -55℃ to +90℃ |
| Operating Humidity | ≤85% RH (without condensation) |
| Lifetime | 20,000 hours at specified luminance |
| Net Weight | 1.7 g |
Key Features
High Resolution & High Contrast:
Supports crisp SVGA 800x600 resolution with an exceptional contrast ratio exceeding 10,000:1, providing sharp images and deep blacks.

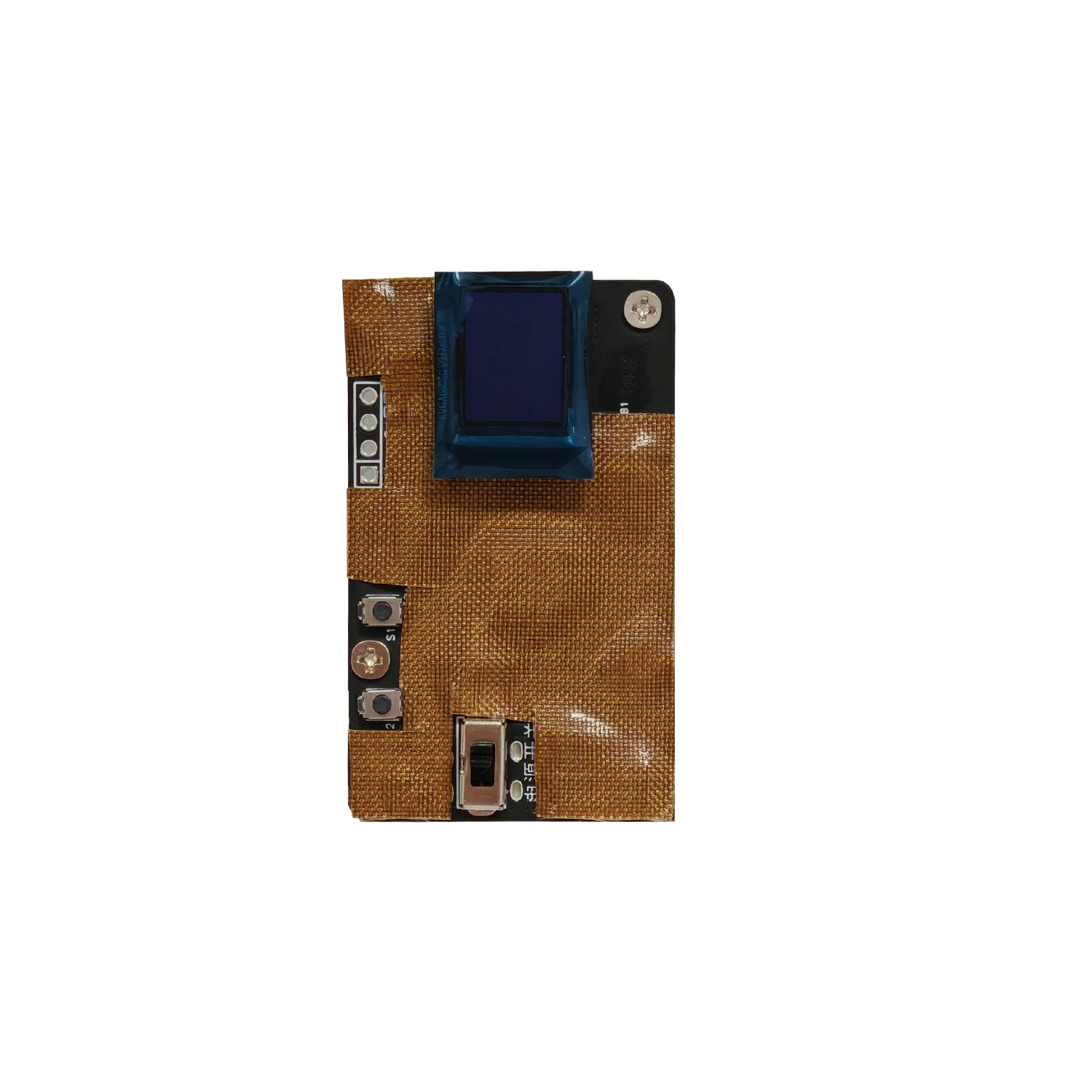

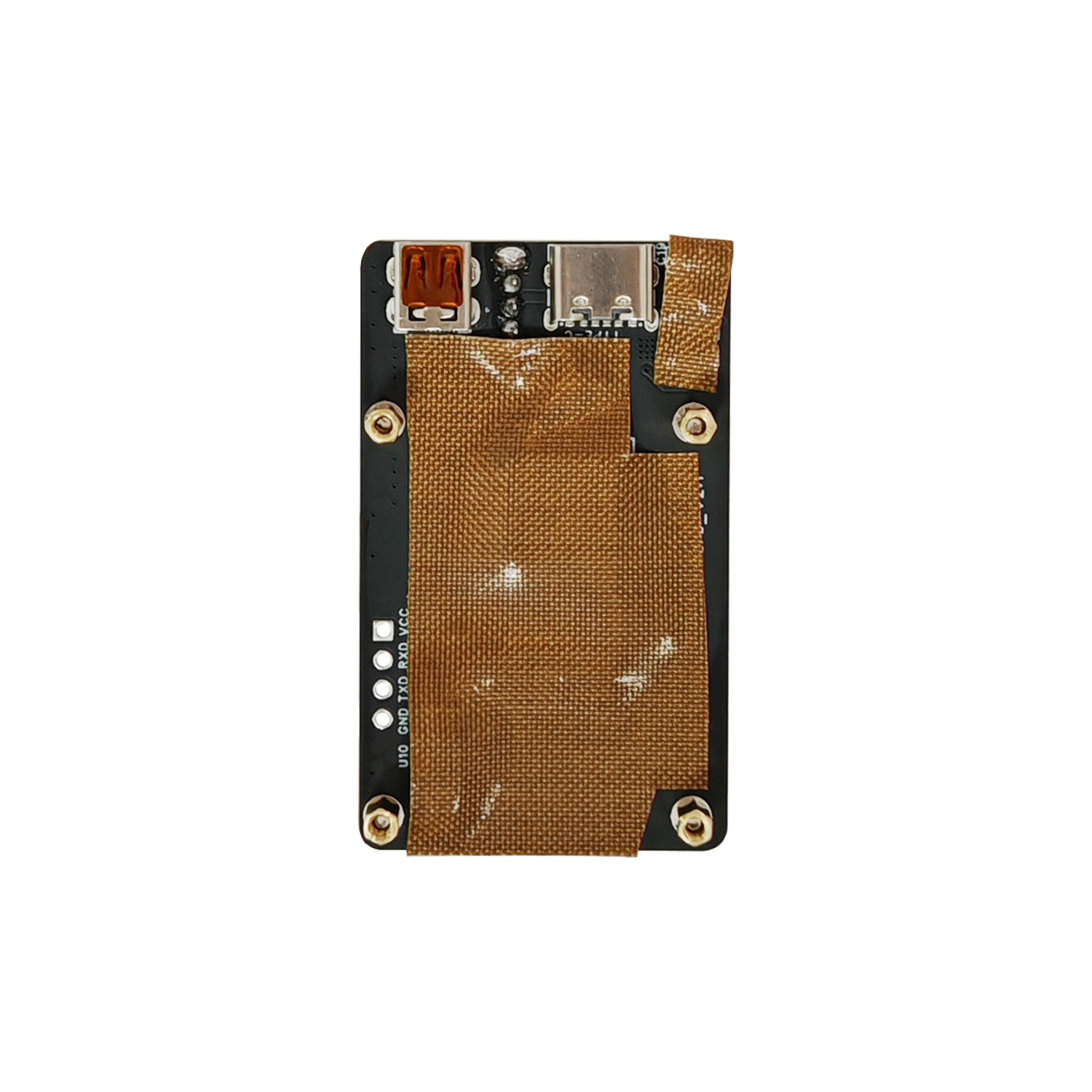

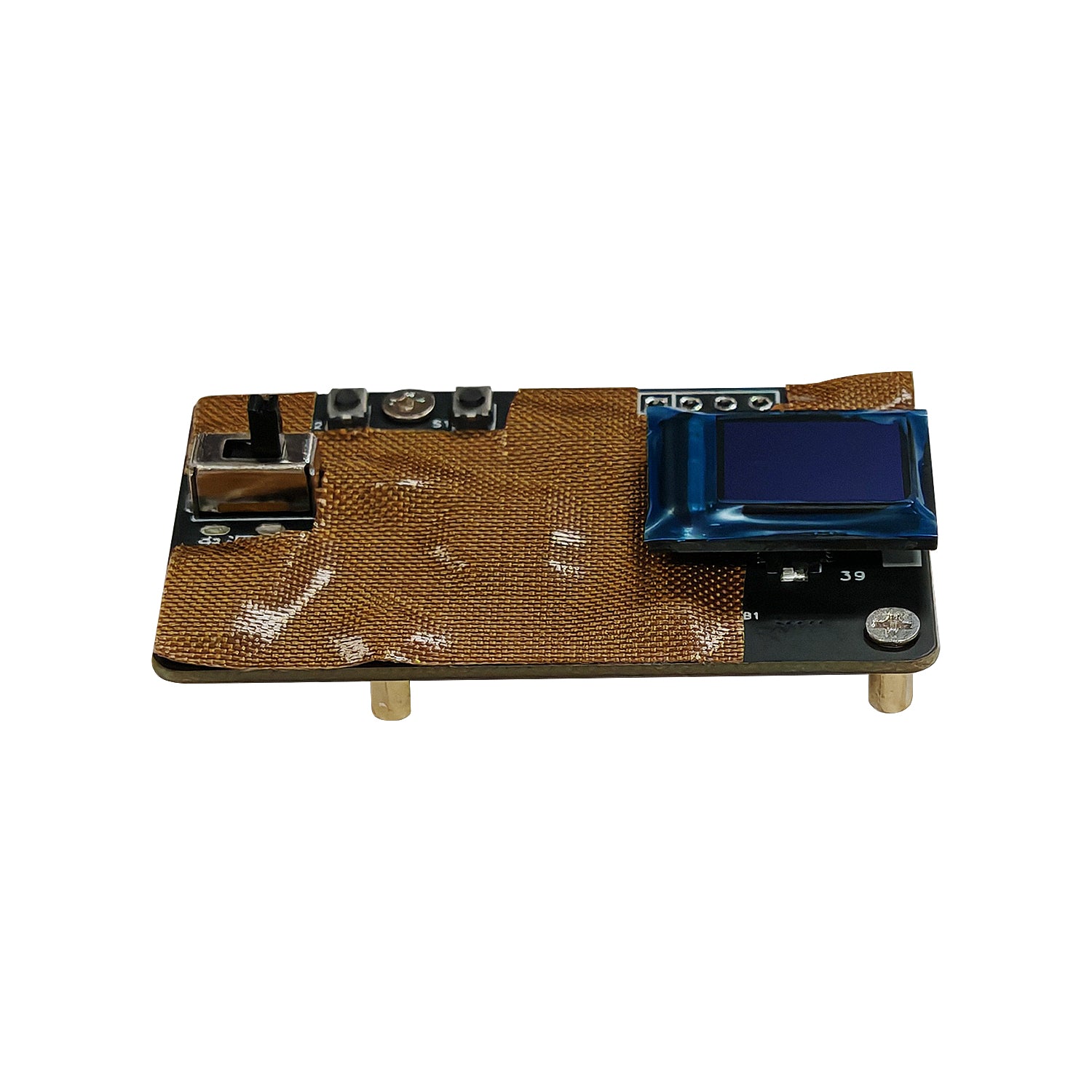

Plug-and-Play HDMI Kit Available:
Equipped with an optional dedicated HDMI driver board, enabling fast R&D evaluation and direct connection to PCs or external video devices without custom hardware debugging.
Industrial-Grade Reliability:
Engineered to withstand harsh environments with a wide operating temperature range from -40°C to +65°C, ensuring stable performance under extreme conditions.
Optimized for Optical Systems:
Featuring a standard 4:3 aspect ratio and 15µm pixel size, it serves as a highly efficient microdisplay solution when paired with the appropriate optics.
Excellent OLightek SVGA060 Alternative:
Offers a reliable, pin-compatible, and highly cost-effective drop-in replacement option for the original OLightek microdisplay in mature product lifecycles.
Low Power Consumption & Lightweight:
Extremely compact design weighing only 1.7g, making it ideal for portable, battery-powered devices.
Drawing &Pin Definition
