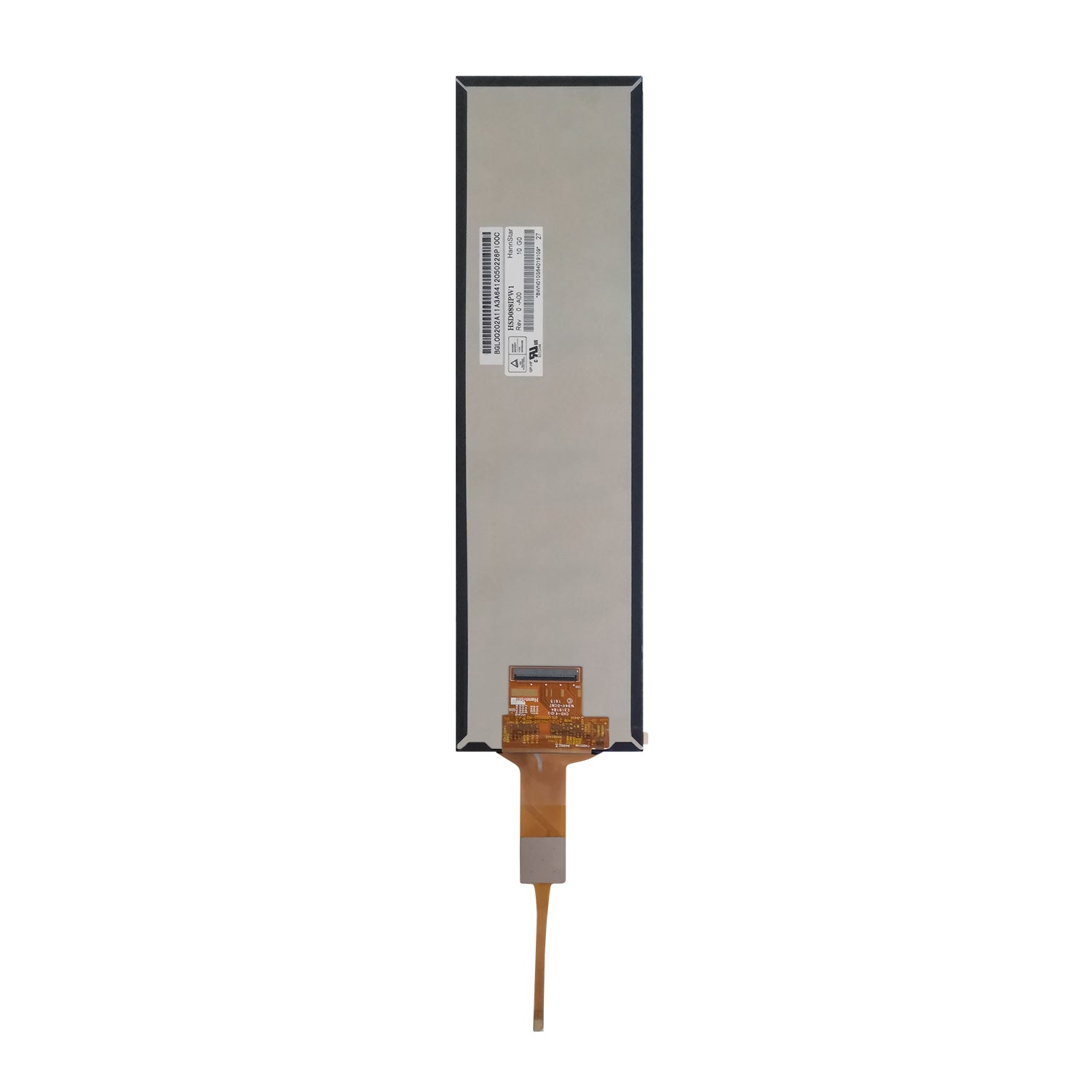

8.88 inch Stretched TFT LCD Display 480x1920 with HDMI for automotive and industrial monitors
8.88 inch Bar Type lcd display monitor 480x1920 for automotive
This 8.88-inch stretched TFT LCD display features an ultra-wide 480x1920 high resolution (bar-type/strip screen layout), making it the ideal choice for server rack monitors, automotive dashboards, smart home control panels, and creative desktop sub-screens.
Equipped with a dedicated HDMI driver board, this plug-and-play display module easily connects to Windows PCs, Raspberry Pi, and other single-board computers without complex configuration. It delivers vibrant colors and crisp details for specialized automotive,industrial and commercial applications.
Specification
| Item | Specification |
| Model Number | HSD088IPW1-A Kit |
| Screen Size | 8.88 inches (Diagonal) |
| Display Type | Stretched TFT-LCD, IPS |
| Resolution | 480 RGB (H) × 1920 (V) |
| Module Dimension | 64.3 (H) × 231.3 (V) × 4.8 (D) mm |
| Active Area | 54.72 (H) × 218.88 (V) mm |
| Pixel Pitch | 0.114 (H) × 0.114 (V) mm |
| Luminance (Brightness) | 600 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angle | 85/85/85/85 (Full View / IPS) |
| Interface Type | HDMI (via Board) / 40-pin MIPI |
| Driver IC | ILI6482B |
| Backlight | White LED |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |
Key Features
-
Ultra-Wide Stretched Aspect Ratio: Unique 1:4 bar-type form factor, perfect for narrow space installations and elongated UI designs.
-
Plug-and-Play HDMI Interface: Comes with a compact HDMI controller board for seamless video signal input and hassle-free setup.
-
High-Resolution Clarity: 480 RGB (H) x 1920 (V) pixels ensure sharp graphics, smooth text rendering, and professional visual performance.
-
Industrial-Grade Reliability: Built with a premium TFT LCD panel, supporting stable 24/7 continuous operation in demanding environments.
-
Versatile Compatibility: Fully compatible with Raspberry Pi, Linux, Windows systems, and various embedded medical or industrial mainboards.
Pin & Definition
