7.6 inch square tft lcd 800x800 mipi touchscreen with HDMI Board

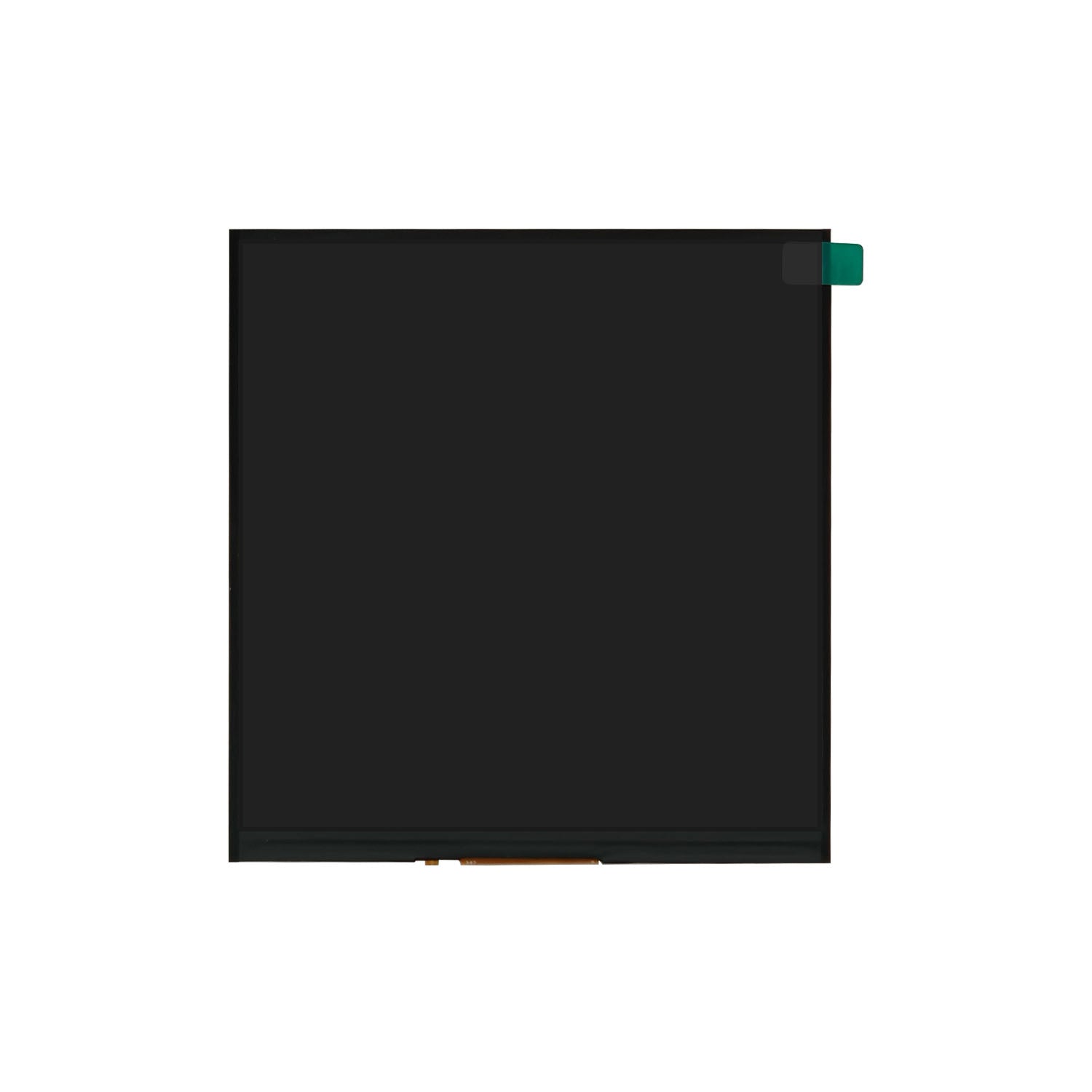

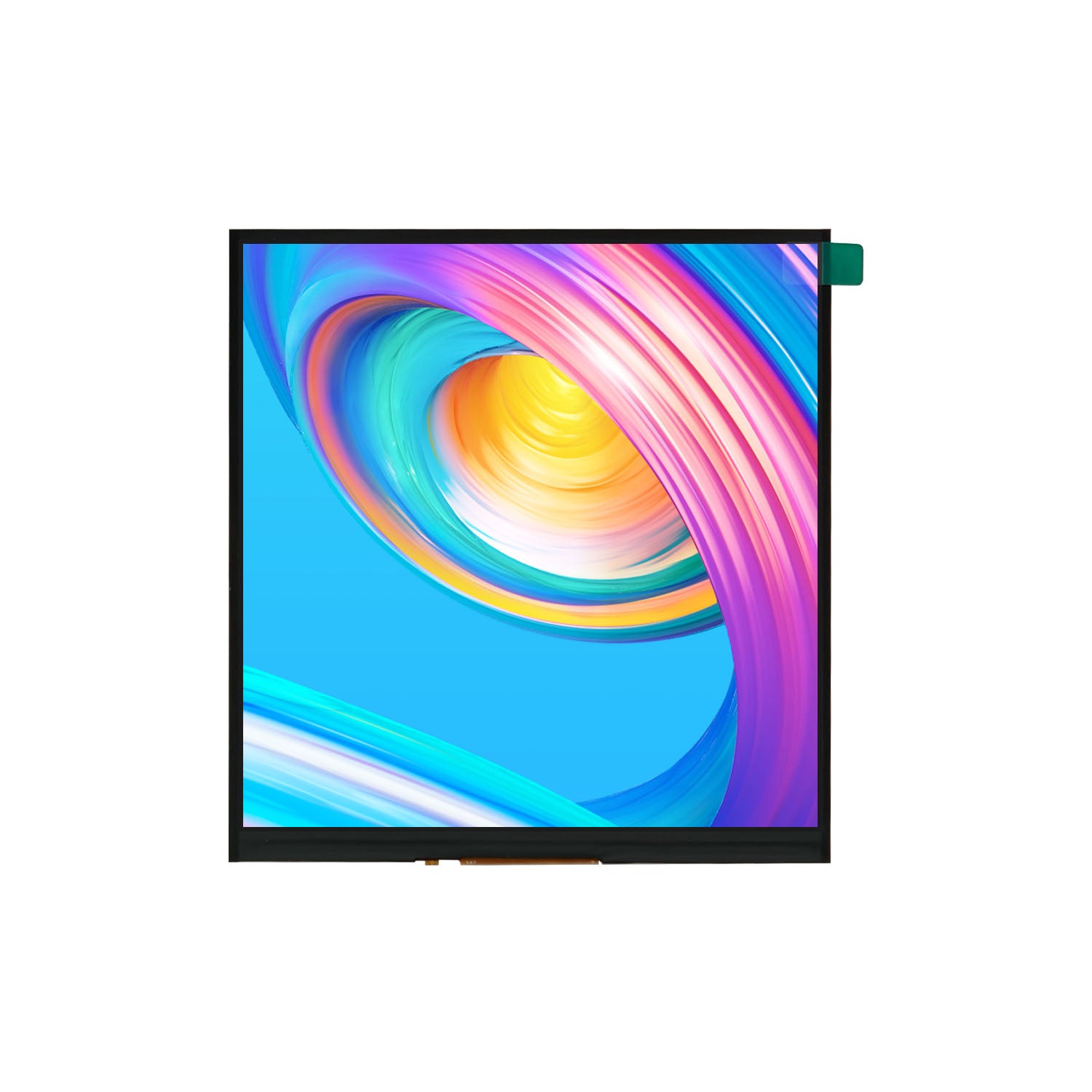

7.6 Inch Square TFT Capacitive Touch Screen
7.6 Inch Square TFT LCD Display offers a practical and reliable visual solution. Featuring a standard 800x800 resolution and a native 1:1 square aspect ratio, this module is specifically engineered to balance stable graphical performance with budgets.

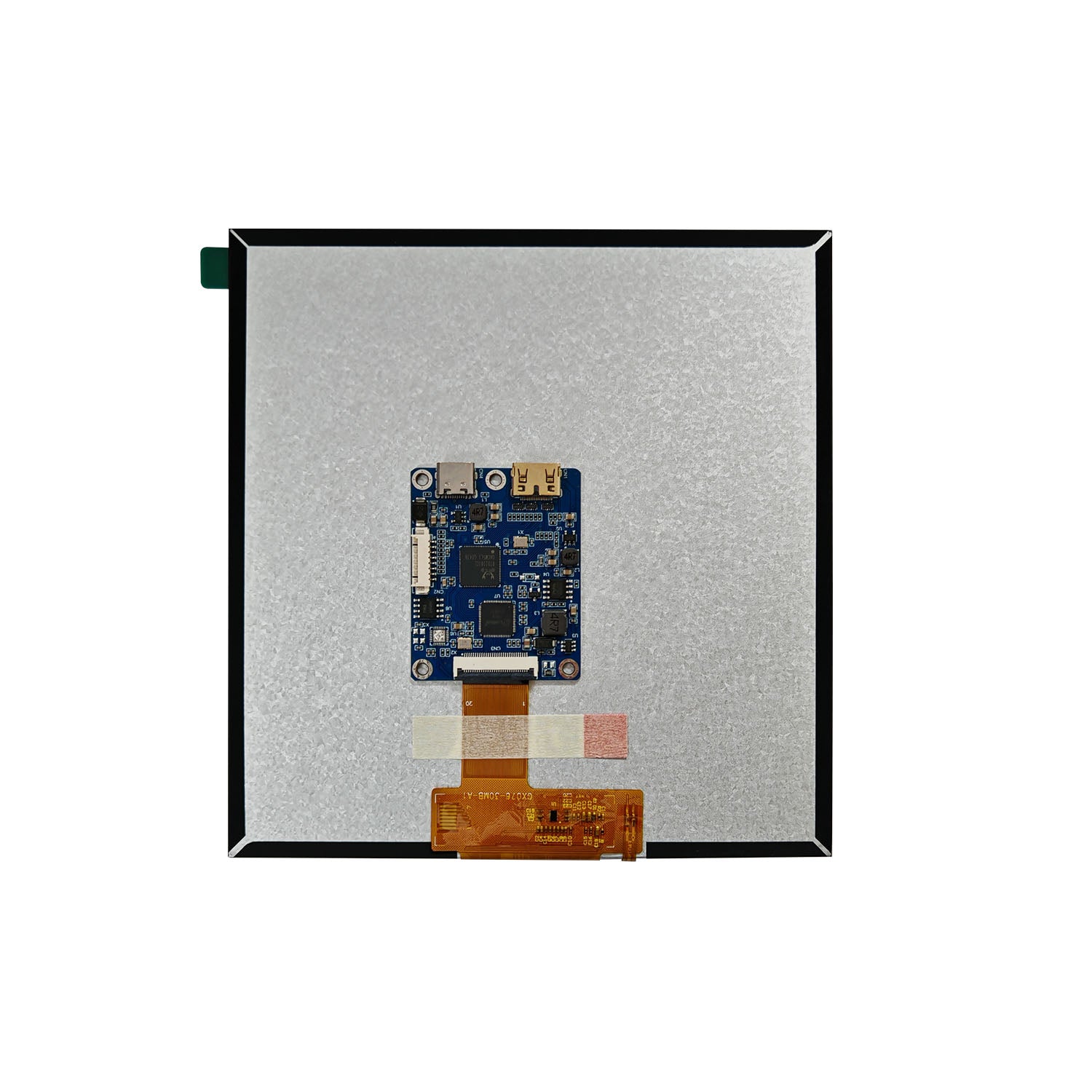

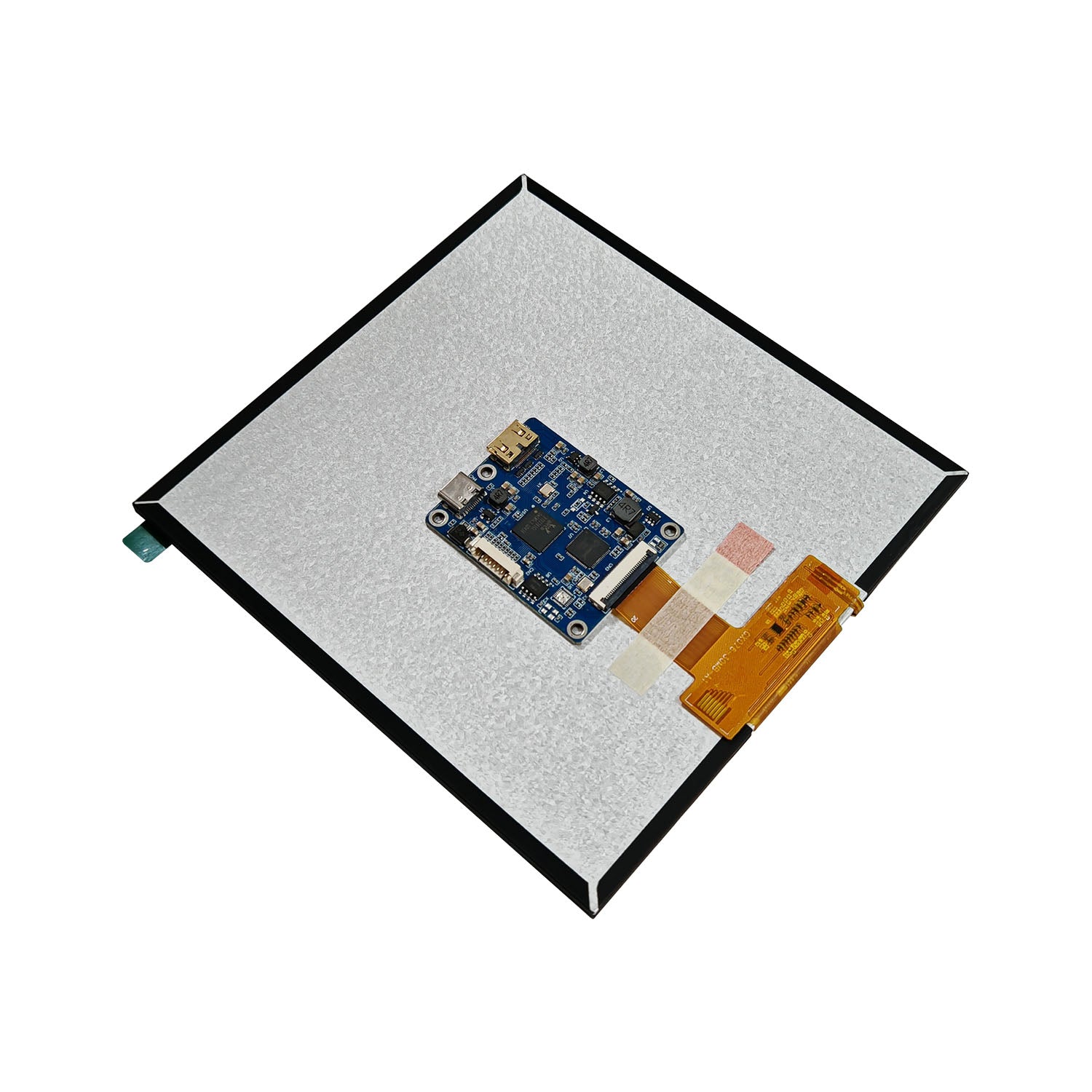

Equipped with a native MIPI interface on the panel and a pre-assembled capacitive touch screen, it provides excellent responsiveness. Whether you need the bare MIPI panel for direct integration or prefer the flexibility of adding our optional MIPI-to-HDMI driver board kit for standard plug-and-play testing, this hardware kit adapts perfectly to smart home dashboards, industrial instrumentation panels, and creative DIY projects.
Specification
| Specification | Details |
| Model Number | HT076-30MB-A1 |
| Display Size | 7.6 inches |
| Resolution | 800 x 800 pixels |
| Aspect Ratio | 1:1 Square |
| Technology | a-Si (Amorphous Silicon) |
| Display Type | Transmissive TFT |
| Viewing Direction | IPS (In-Plane Switching) |
| Outline Dimensions | 142.56mm (H) x 148.24mm (V) x 5.1mm (D) |
| Pixel Pitch | 36.5mm (H) x 109.5mm (V) |
| Active Area | 135.36mm (H) x 135.36mm (V) |
| Color Depth | 16.7M colors |
| Pixel Configuration | RGB Vertical Stripe |
| Driver IC | JD9365 |
| Display Mode | Normally Black |
| Interface | MIPI |
| Connector Type | Connector |
| LED Count | 10 LEDs |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +75°C |
Key Features
- Cost-Effective Square Display: Engineered with an 800x800 resolution that delivers reliable, clear graphics while offering a more budget-friendly alternative for high-volume commercial and industrial deployments.

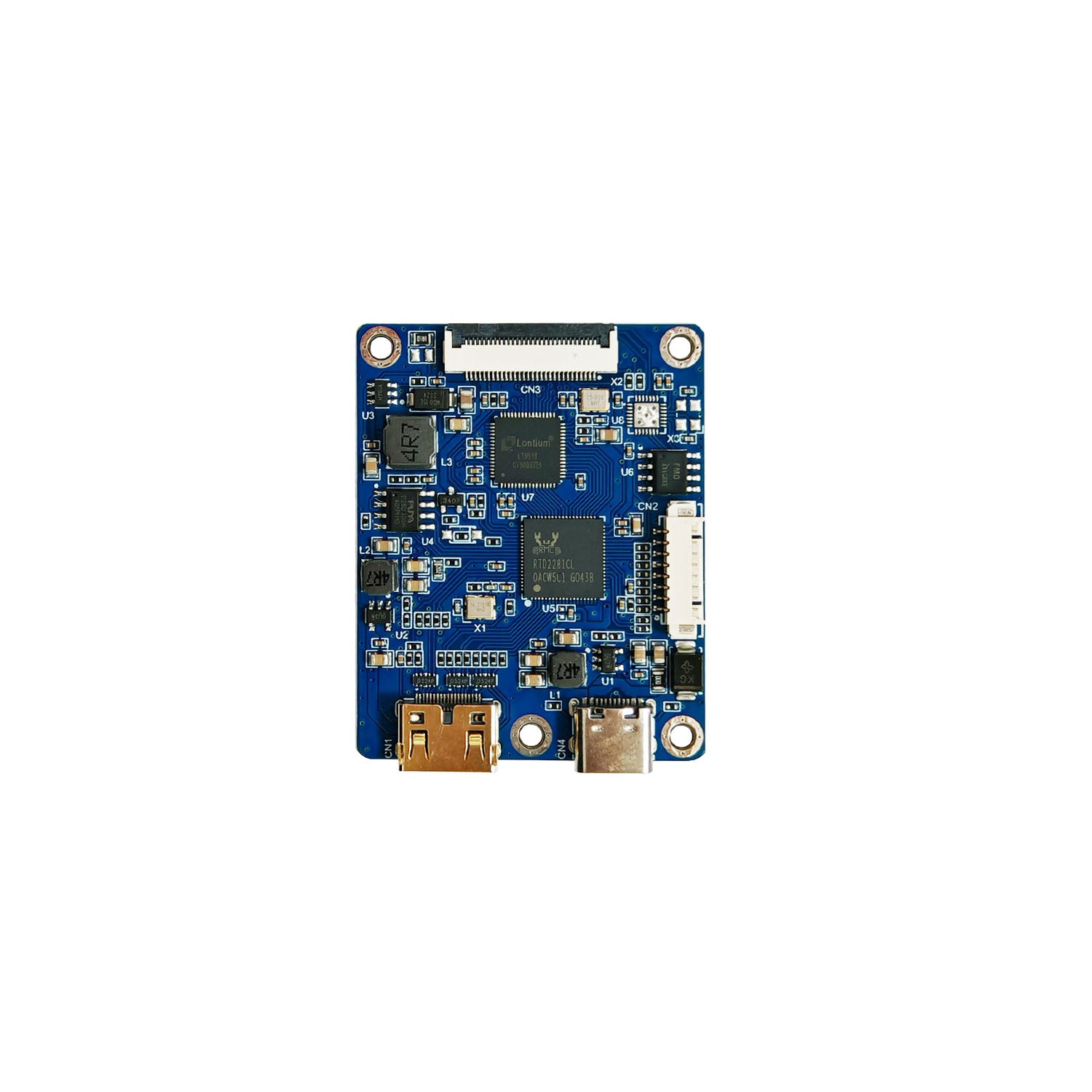

- Native MIPI Interface with HDMI Extension: Designed with a low-latency native MIPI panel interface. For added versatility, choose the variant with the custom MIPI-to-HDMI board to immediately enable standard plug-and-play HDMI functionality.
- Standard 1:1 Aspect Ratio Geometry: The distinctive 7.6-inch symmetrical square layout maximizes usable vertical and horizontal area, making it ideal for smart thermostats, industrial controller faces, and custom IoT devices.
- Integrated Capacitive Multi-Touch: Features a factory-bonded capacitive touchscreen panel that provides smooth interactive capabilities, speeding up user interface development and deployment.
- Industrial-Grade Reliability: Built with durable TFT LCD technology to ensure stable, long-term continuous operation across diverse embedded environments and operating temperatures.
Drawing & Pin Definition
