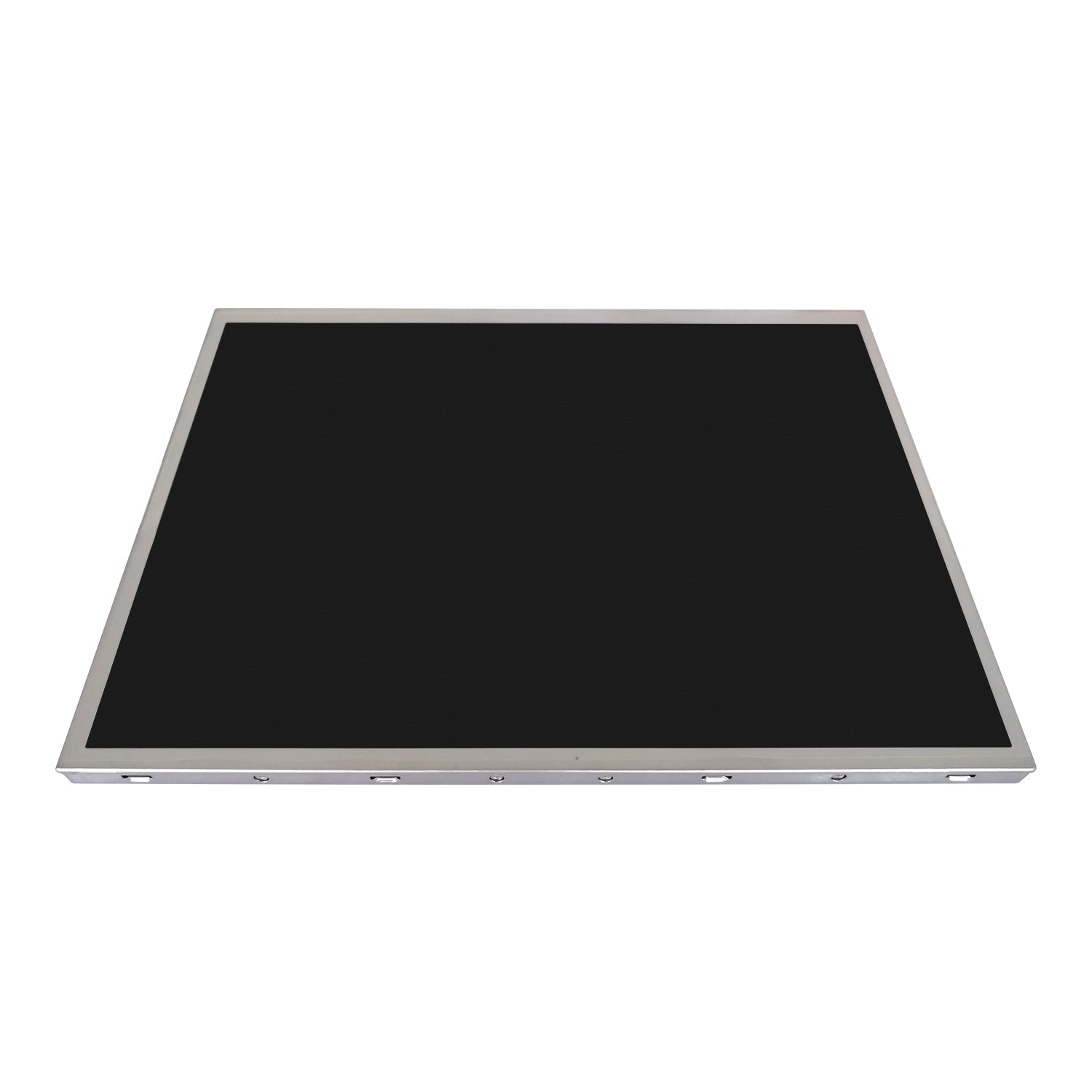

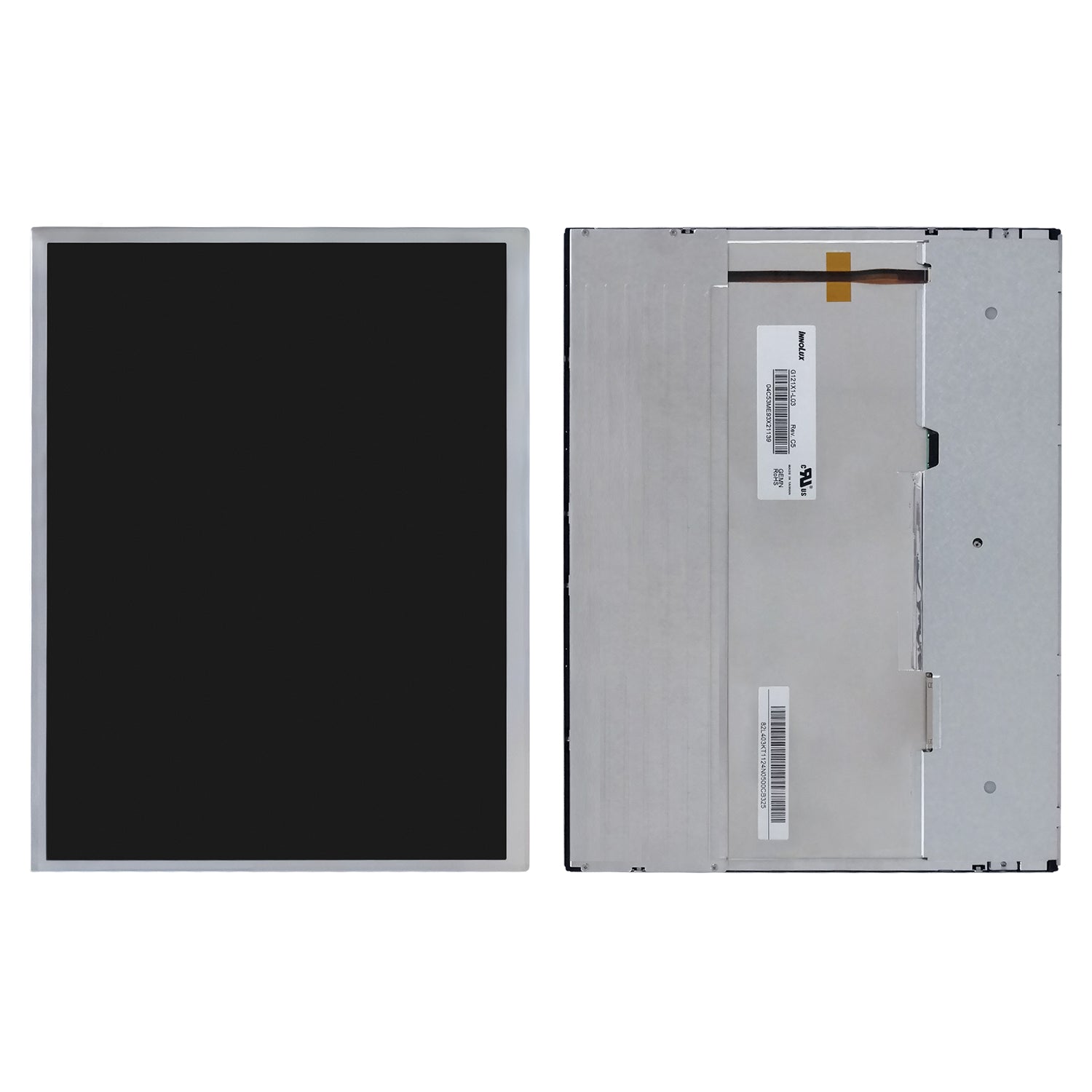

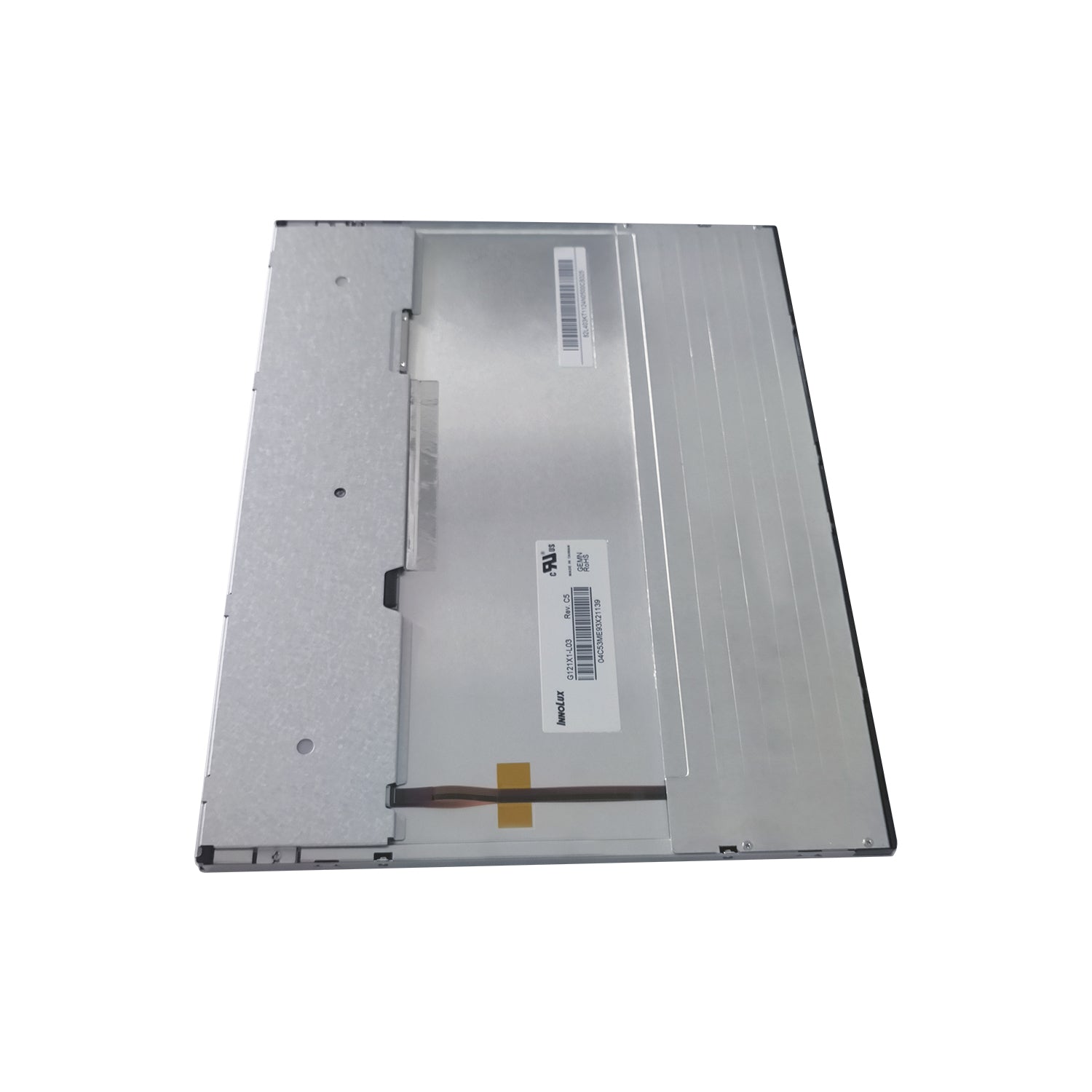

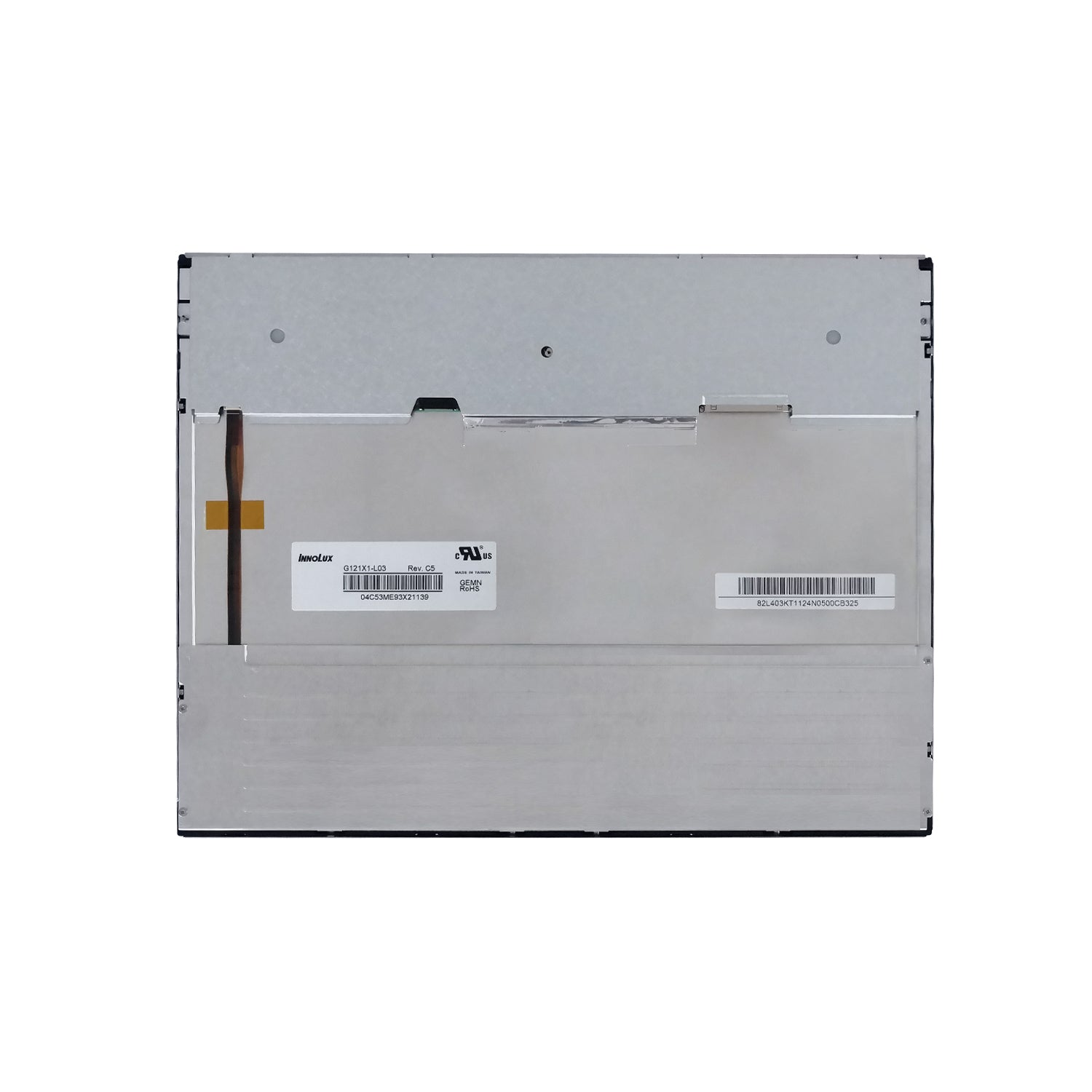

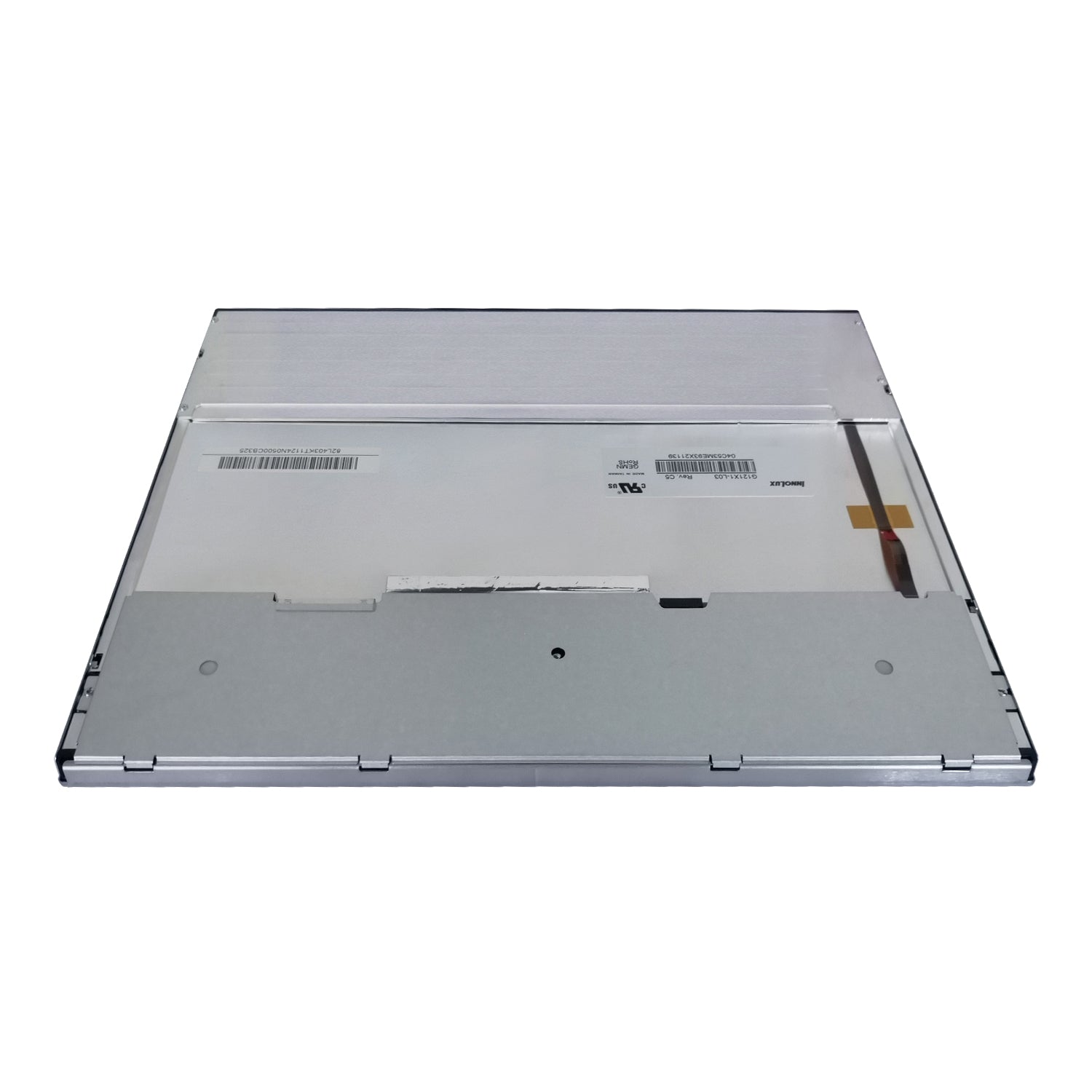

12.1 inch TFT LCD Panel 1024x768 XGA LVDS
Description
This 12.1 inch TFT LCD display panel is original from Innolux G121X1-L03, it is with 1024x768 XGA resolution and 600 nits brightness, support LVDS interface,for industrial HMI, TFT LCD Monitor ,medical & commercial displays,Transportation & Marine,Amusement and Vehicle
Specifications
| Parameter | Specifications |
| Brand / Manufacturer | Innolux |
| Model Number | G121X1-L03 |
| Screen Size | 12.1 inch |
| Resolution | 1024 × 768 (XGA) |
| Active Area | 245.76(H) × 184.32(V) mm |
| Bezel Opening Area | 249.0 × 187.5 mm |
| Pixel Pitch | 0.240(H) × 0.240(V) mm |
| Display Colors | 262k / 16.2M |
| Surface Treatment | Hard coating (3H), Glare |
| Brightness | 600 cd/m² (Nits) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 160°(H) / 140°(V) |
| Interface Type | LVDS (1-ch, 8-bit), 20-pin Connector |
| Backlight Type | WLED (Long Life) |
| Power Consumption | 11.8 W (Black pattern) |
| Application Grade | Industrial Grade |
Key Features
-
Industrial-Grade Reliability: Engineered specifically for industrial applications, offering high stability, resistance to vibrations, and a long-life WLED backlight system.
-
Sharp XGA Resolution: Features a 1024 x768$ pixel resolution in a classic 4:3 aspect ratio, delivering clear and precise data displays for HMI and medical equipment.
-
High Brightness & Contrast: Boasts an industrial-standard 600 nits (600 cd/m2 ) brightness and a 700:1 contrast ratio, ensuring excellent legibility even in well-lit environments.
-
Standard 20-pin LVDS Interface: Utilizes a reliable 1-ch 8-bit LVDS interface for seamless integration with standard industrial controller boards.
-
Wide Viewing Angles: Supports 160° horizontal and 140° vertical viewing angles, preventing color inversion or image distortion when viewed from different positions.
