2.1 inch Round TFT LCD Display 480x480
Description

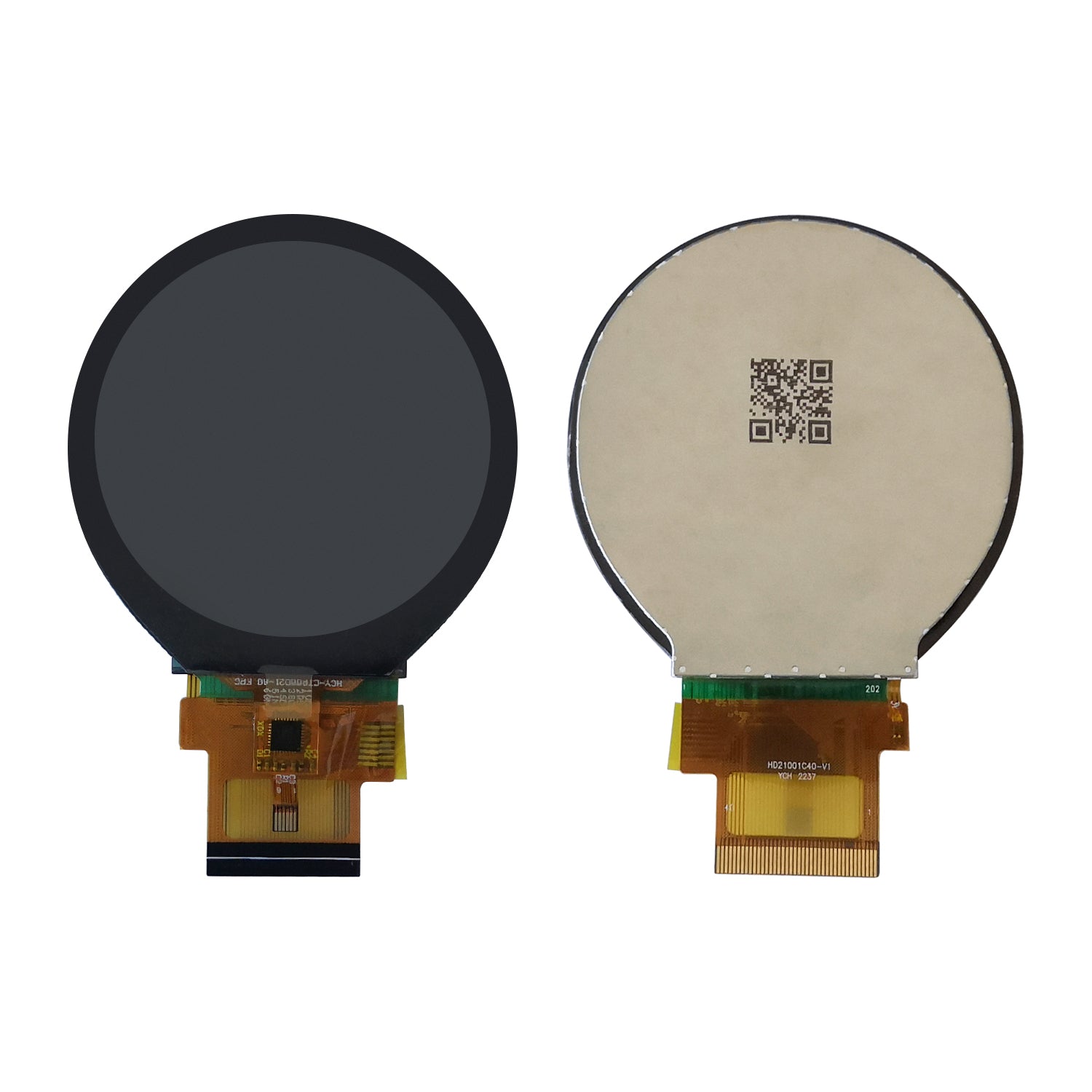

This 2.1 inch 480x480 circle display panel, capacitive touch round screen module, supporting RGB SPI interface and assembled with driver ic of ST7701S, ideal used for smart home,round aio display pc case (hardware monitoring, AIO liquid cooler dynamic display)and Motorcycle/E-bike digital speedometers

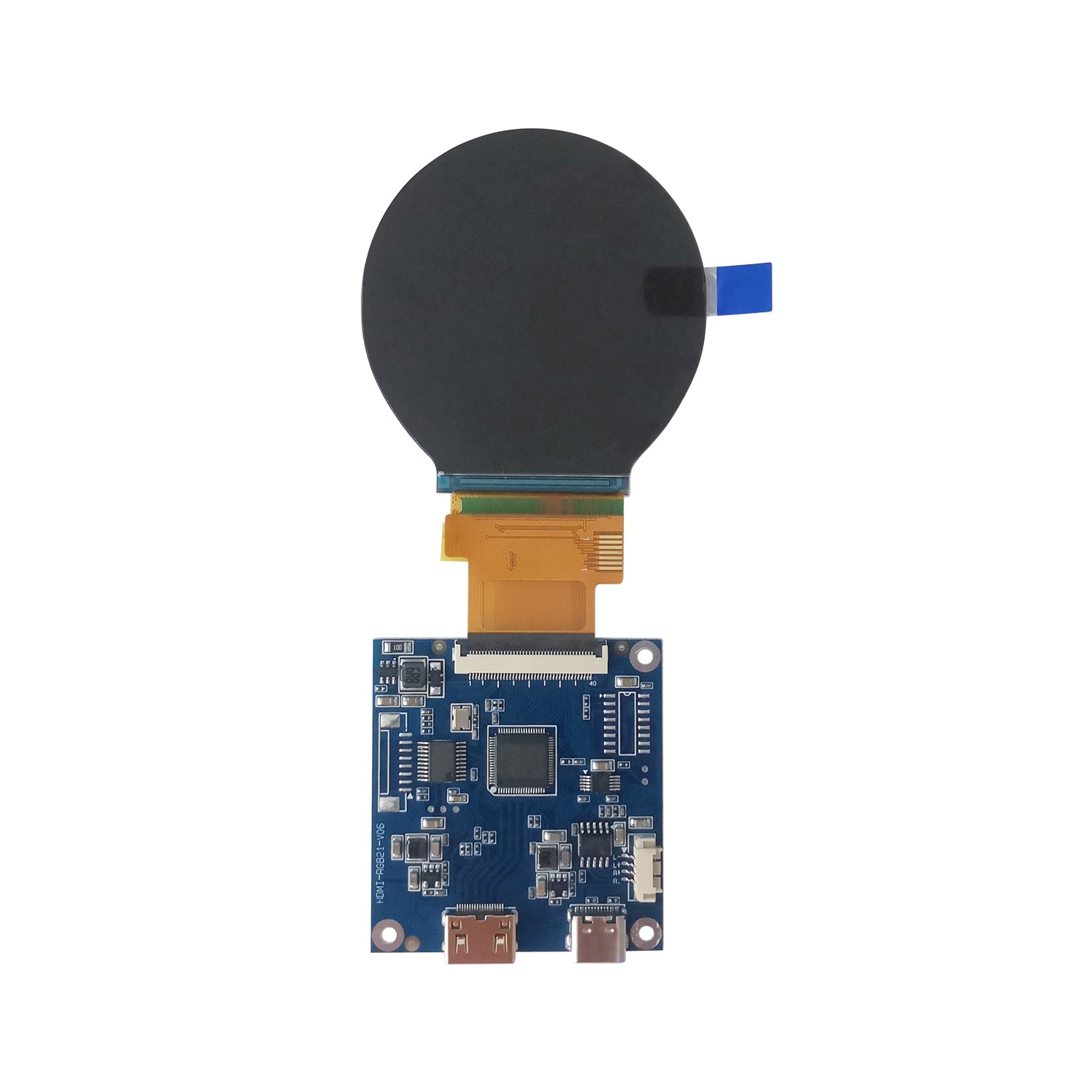

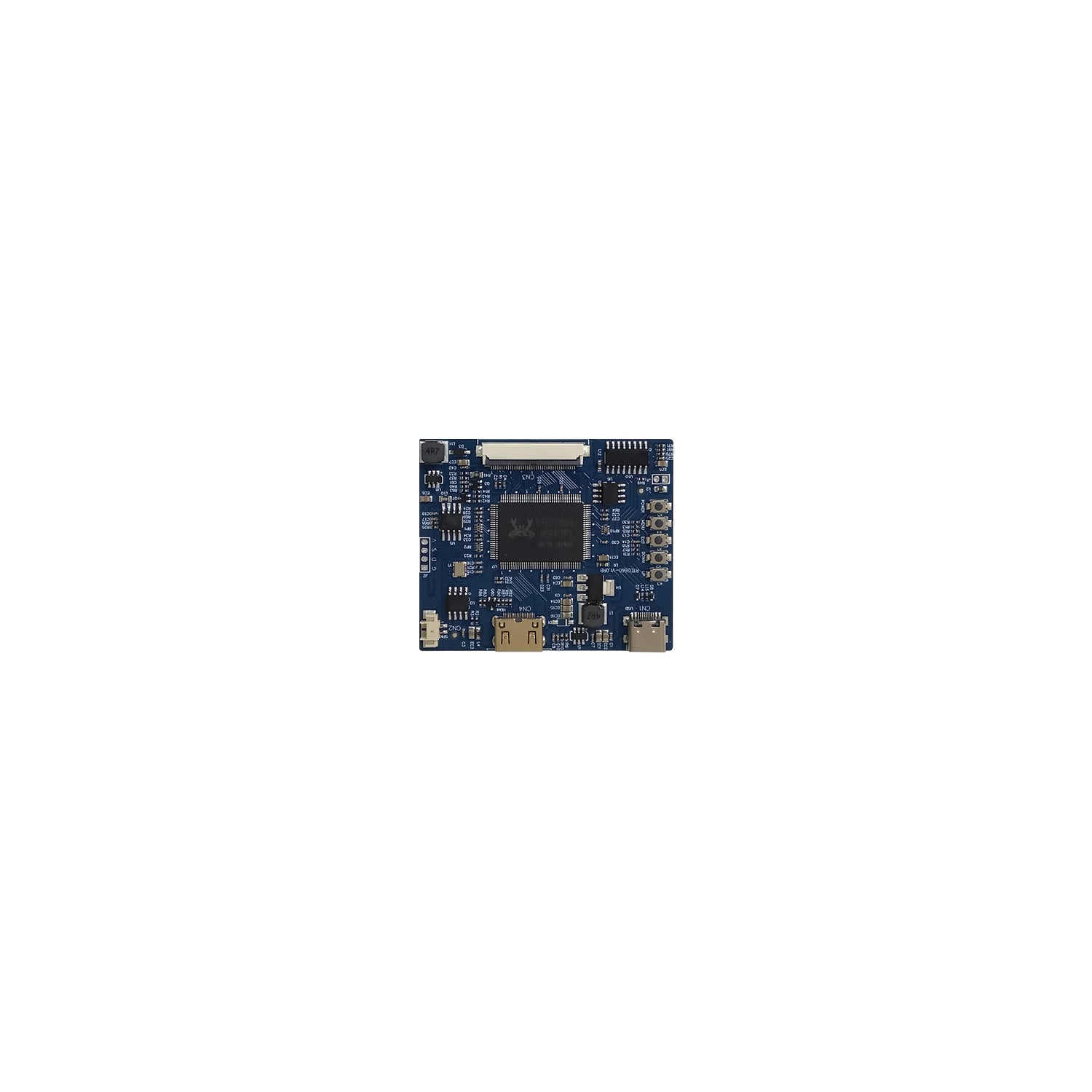

and there we have HDMI driver board for this 2.1 inch round tft display module, which can be used with Raspberry Pi, Arduino, ESP32-S3, and STM32 engineering projects.
Specification
| Parameter | Specification |
|---|---|
| Display Size | 2.1 Inch |
| Display Shape | Round |
| Display Mode | Normally Black |
| Resolution | 480(RGB) × 480 |
| Display Color | Full Color |
| Color Depth | 16.7M Colors (24-bit) |
| Viewing Direction | All Viewing Angle |
| TFT Technology | a-Si TFT |
| Pixel Arrangement | R.G.B Vertical Stripe |
| Frame Rate | 60Hz |
| Driver IC | ST7701S |
| Interface | 3SPI + 18RGB |
| Brightness | 300 cd/m² |
| Contrast Ratio | 900:1 |
| Outline Dimension | 56.18 × 59.71 × 2.3 mm |
| Active Area | 53.28 × 53.28 mm |
| Connector Type | 0.5 Pitch 40Pin |
| Pin Number | 40 Pins |
| Touch Panel | Yes |
| LED Backlight | Integrated LED |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
Key Features
Optional Capacitive Touch Screen: Upgrade your project from static to interactive. The high-sensitivity capacitive touch panel allows for smooth swiping and precise tapping.

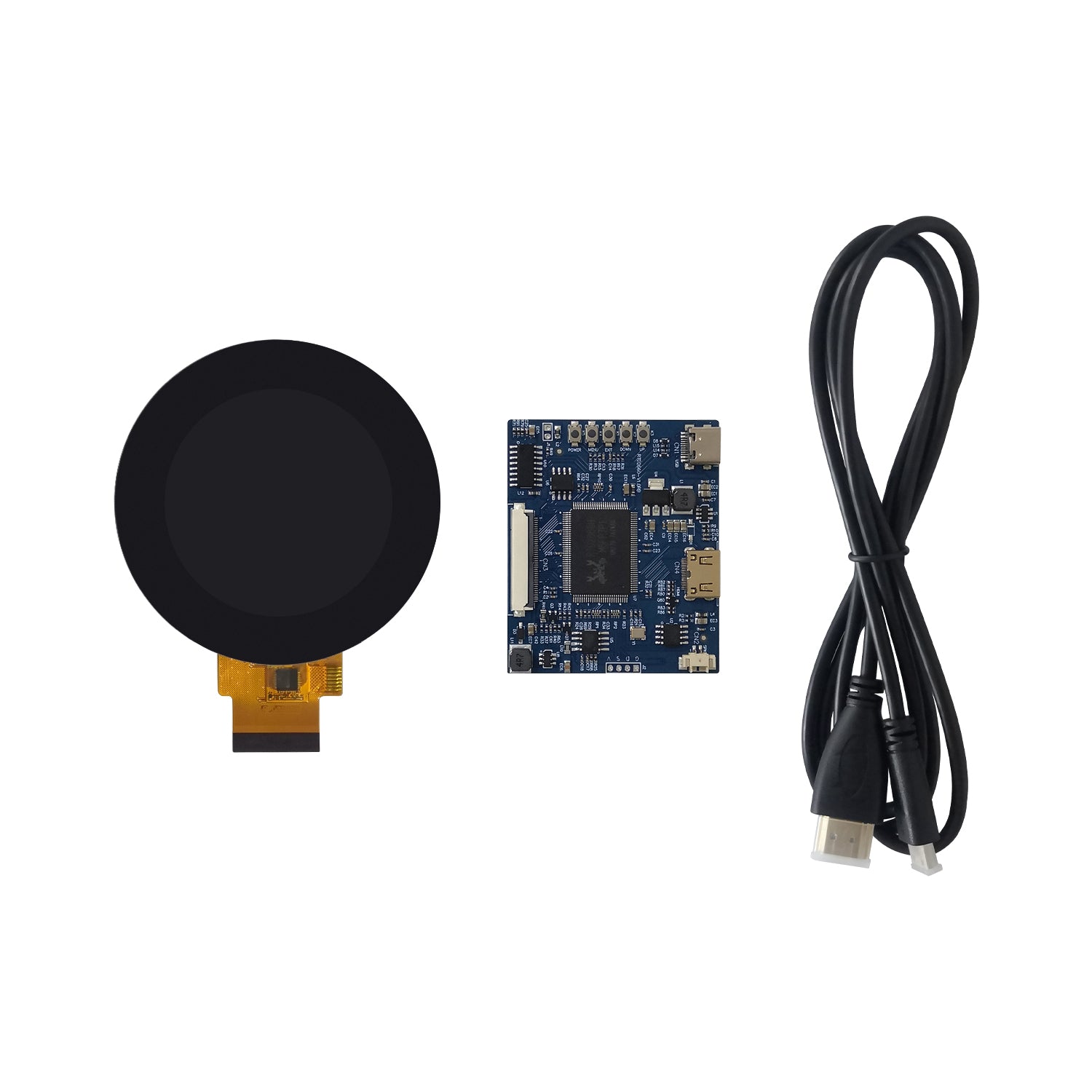

Plug-and-Play HDMI Driver Board Available:No complex custom wiring or driver compilation required! Choose the HDMI Kit variant for an instant demo setup, making it 100% compatible with Raspberry Pi, Windows PC, and Mini PCs.
Stunning IPS Panel: Offers true-to-life colors, high contrast, and an ultra-wide viewing angle.
