2.08 Inch OLED Display Module 256x64 I2C Interface (SH1122)

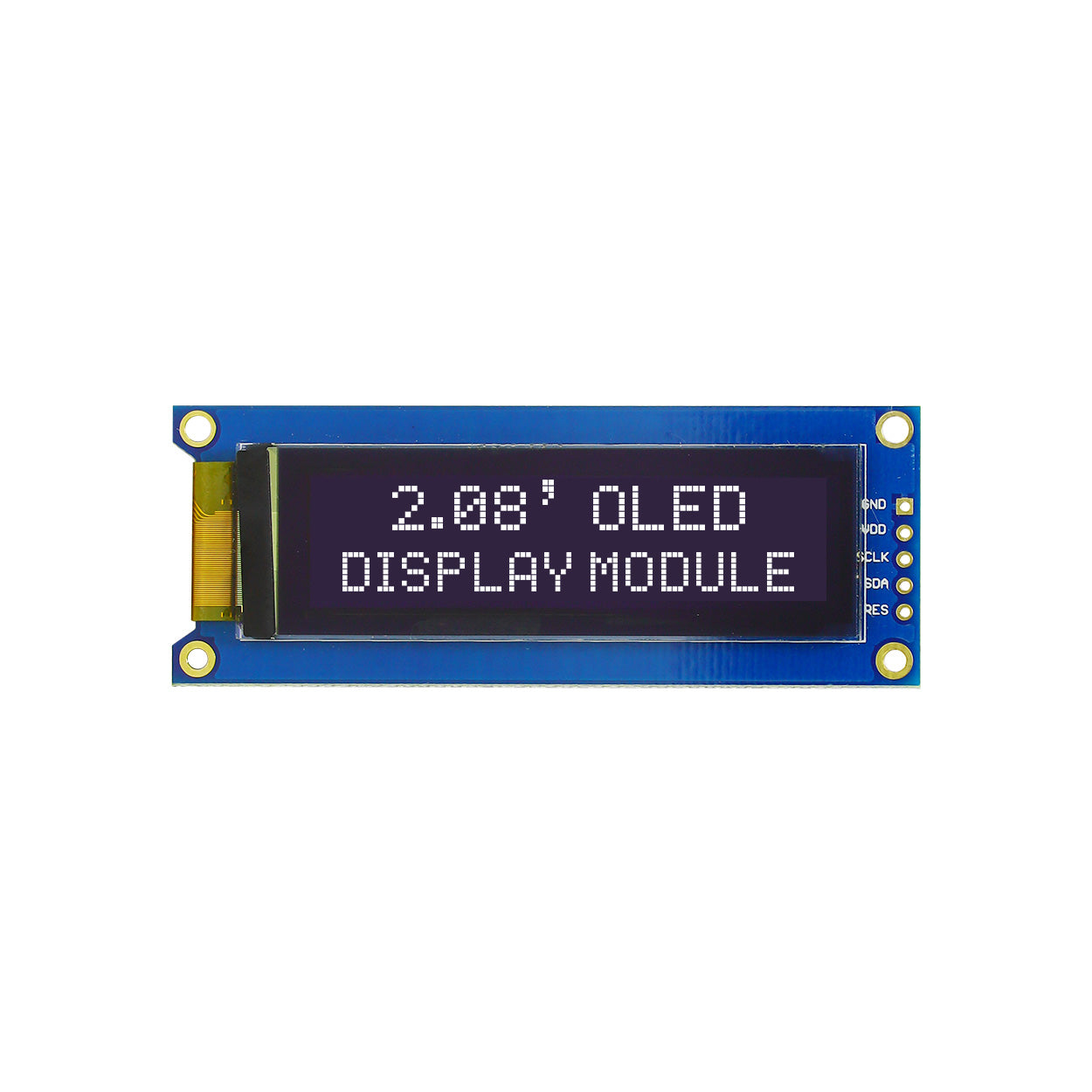

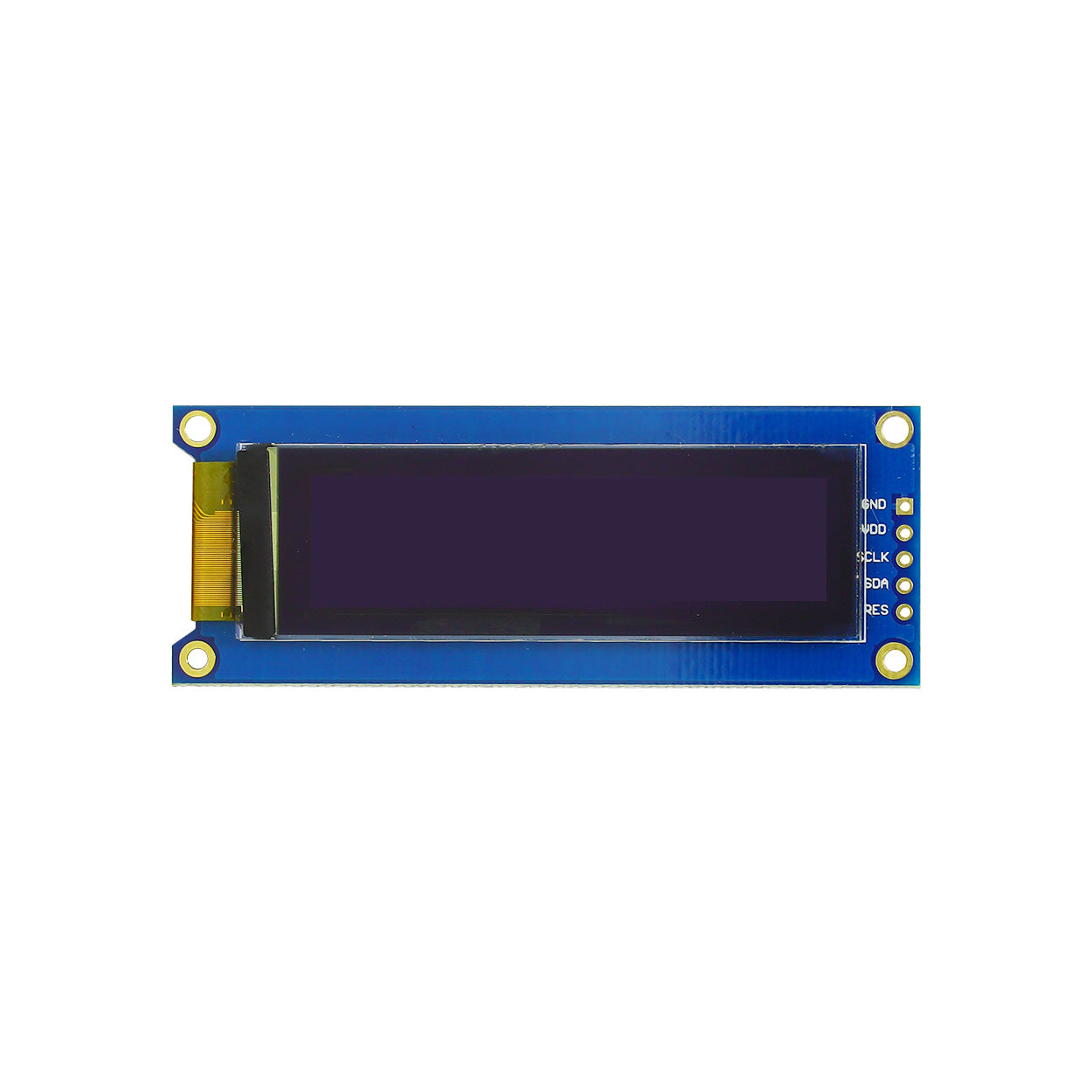

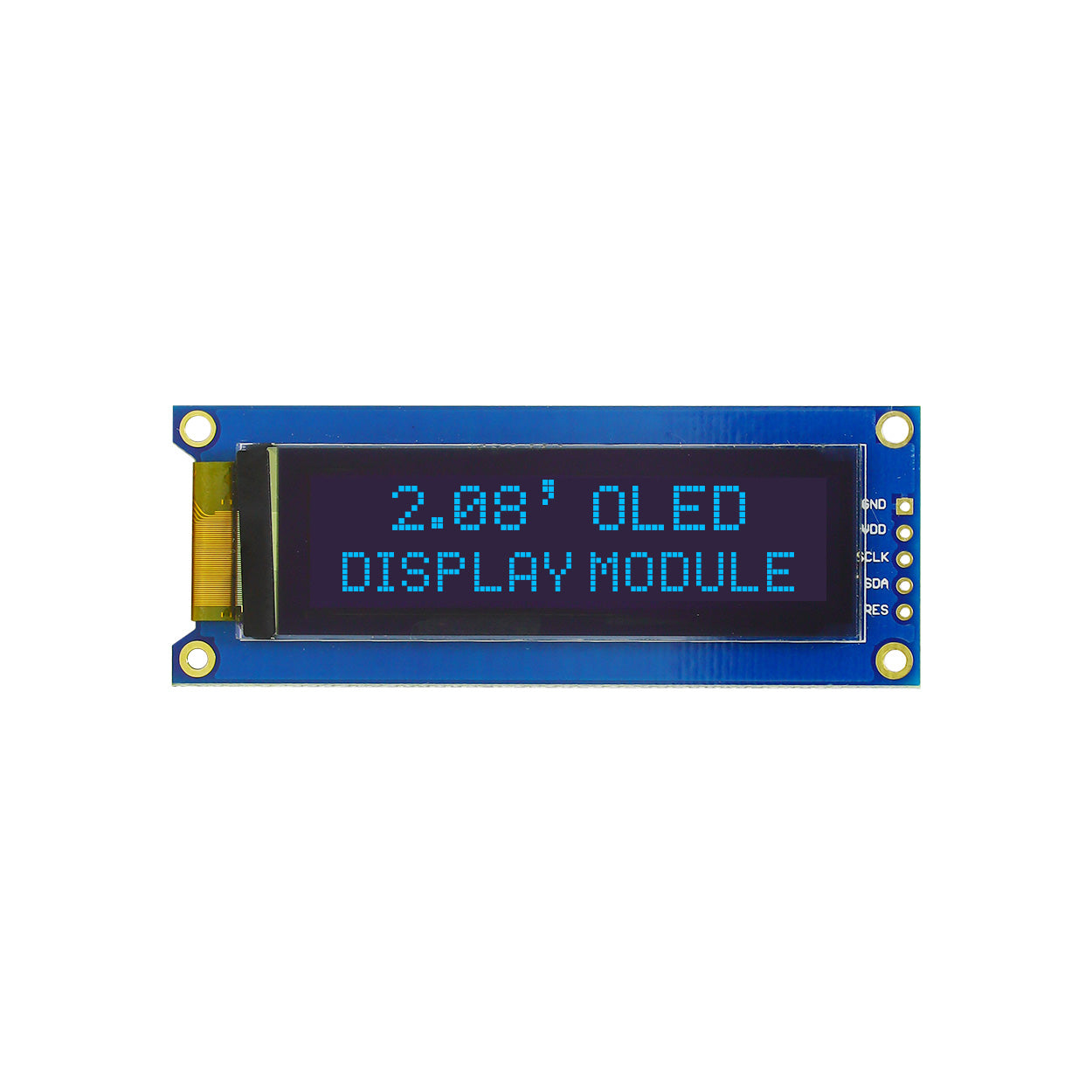

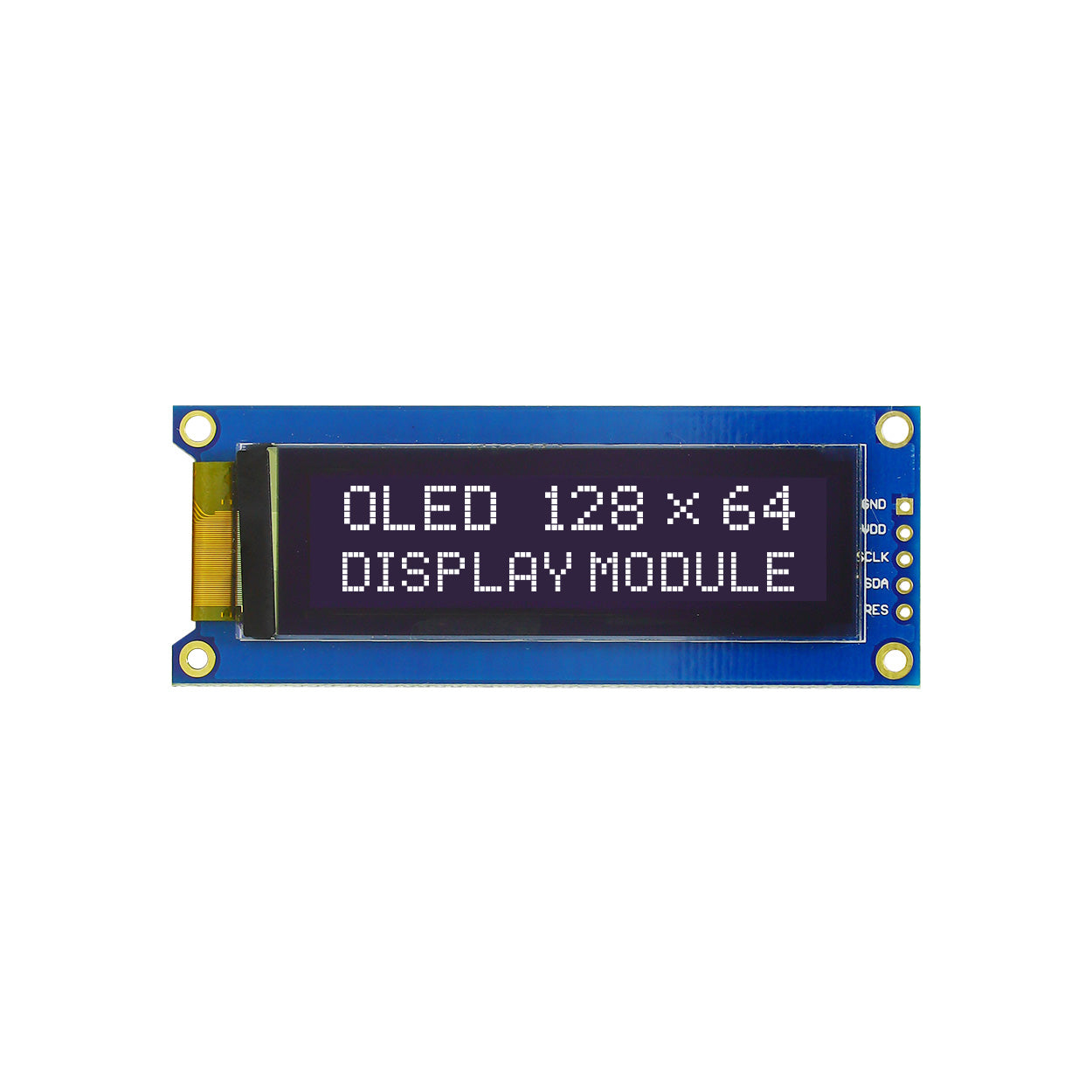

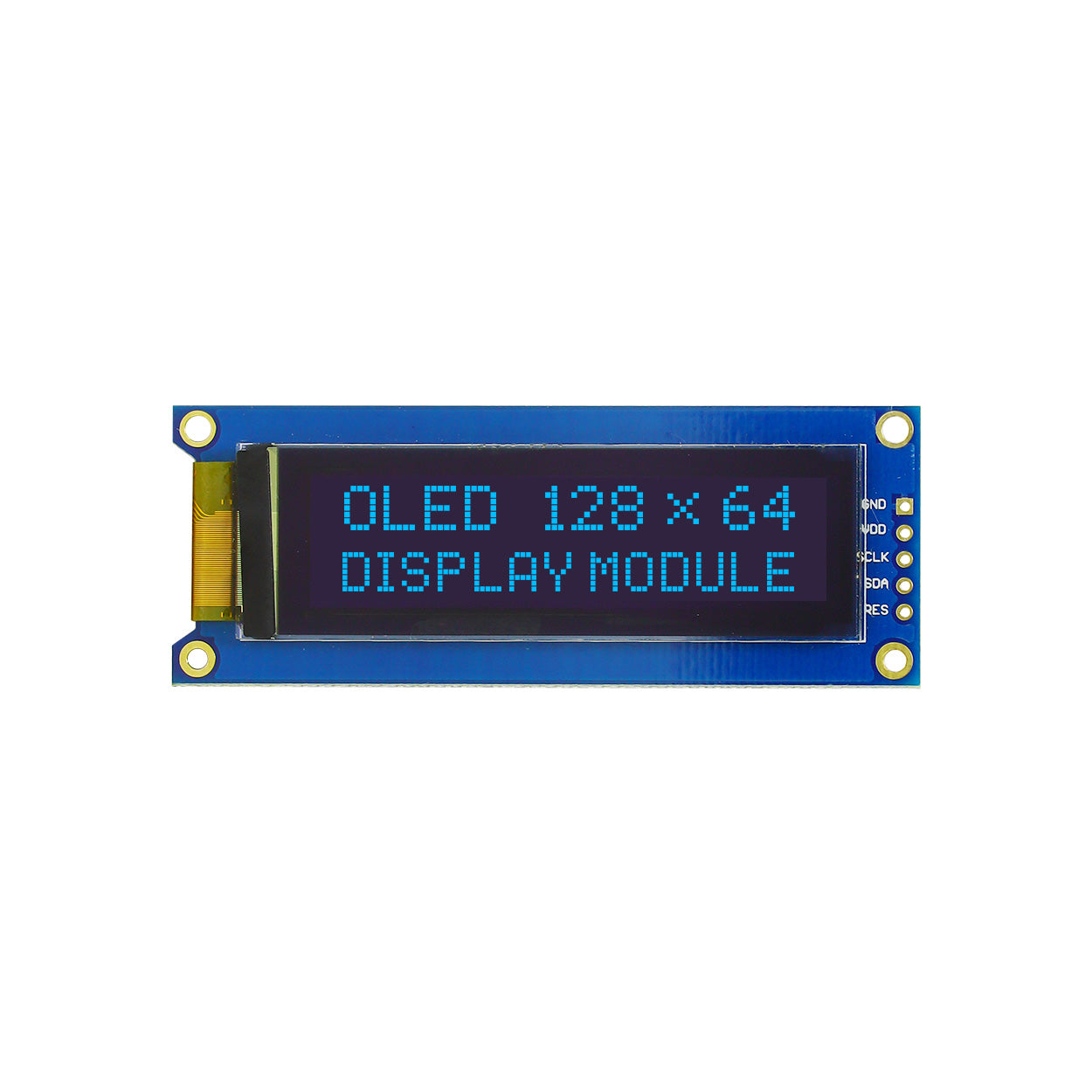

2.08 Inch OLED Display Module 256x64 for Raspberry Pi
Upgrade your embedded and custom electronics projects with our high-contrast 2.08 Inch OLED Display Module (256x64). Engineered with PM OLED technology and powered by the reliable SH1122 driver IC, this high-resolution screen provides exceptionally clear graphics, vibrant text, and ultra-wide viewing angles for superior readability in any environment.
Featuring a compact form factor with a 5-pin I2C interface, this display offers simple wiring and quick integration with popular microcontrollers including Arduino, STM32, and Raspberry Pi.
Specifications
| Parameter | Specification |
| Display Type | PM OLED |
| Screen Size | 2.08 inch |
| Resolution | 256(H) x 64(V) Dots |
| Display Color | White / Blue |
| Interface | I2C (IIC) |
| Driver IC | SH1122 |
| Viewing Direction | All (Full Angle) |
| Outline Dimensions | 72.5 (L) x 27.3 (W) x 3.3 (MAX) mm |
| Active Area | 51.18 (H) x 12.78 (V) mm |
| Pixel Size | 0.18 x 0.18 mm |
| Pin Count | 5 Pins |
Key Features
- High Resolution Graphics: 256x64 dot matrix delivering crisp, detailed visuals and easy-to-read text.
- Bright & Dynamic Colors: Available in sleek White or high-visibility Blue monochrome options.
- Full Viewing Angle: All-around viewing direction ensures maximum legibility from every angle.
- Simplified I2C Interface: Fast data transmission using a compact 5-pin pinout, minimizing required I/O ports.
- Compact Form Factor: Slim 3.3mm profile designed for space-constrained electronics designs.
- Reliable Performance: Powered by the standard SH1122 driver IC for broad library support and quick setup.

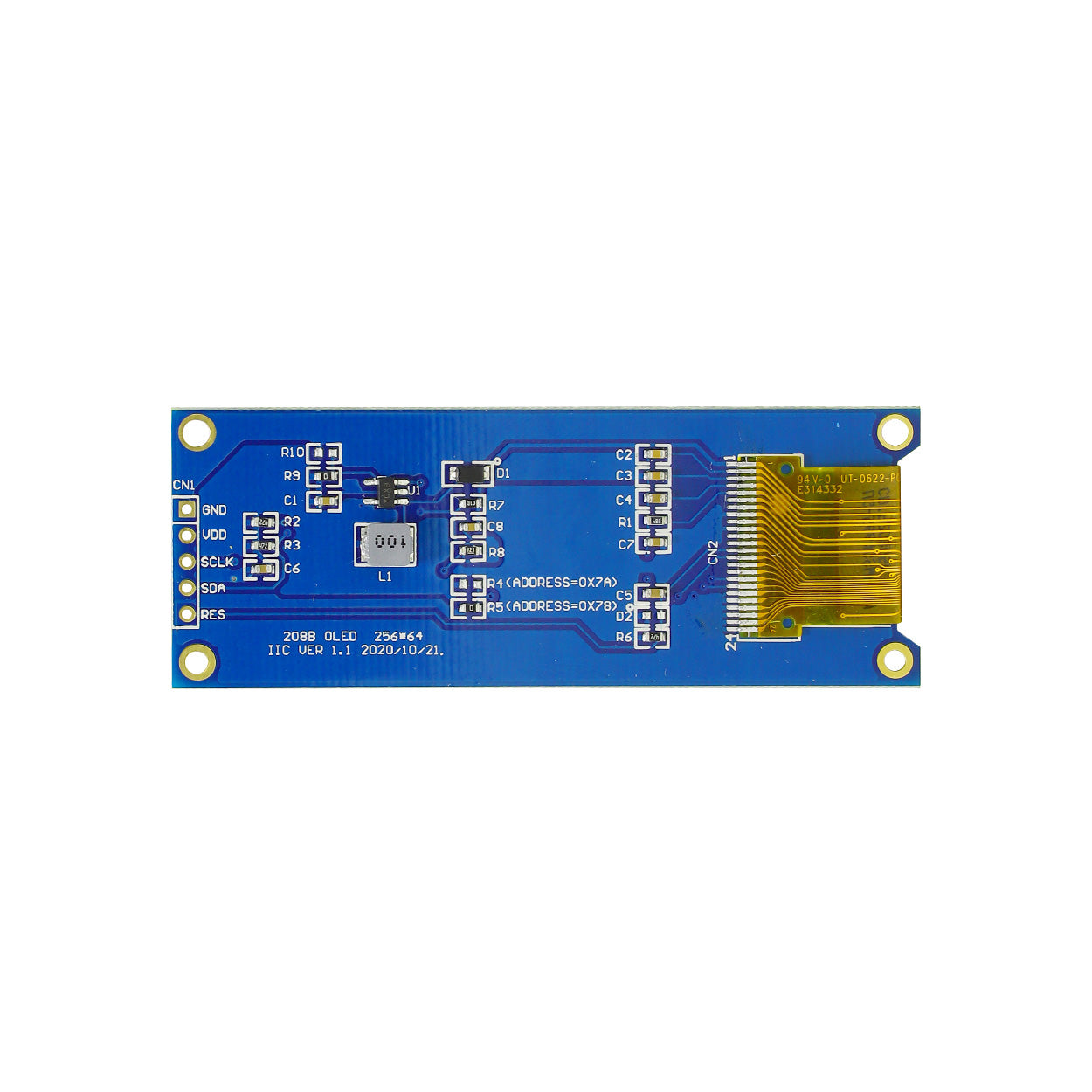

Drawing & Pin Definition
