7 Inch Round TFT LCD Display Module 1080x1080 MIPI Circular TouchScreen
7 inch circular TFT Display Capacitive touch-1080x1080,MIPI,900NITS

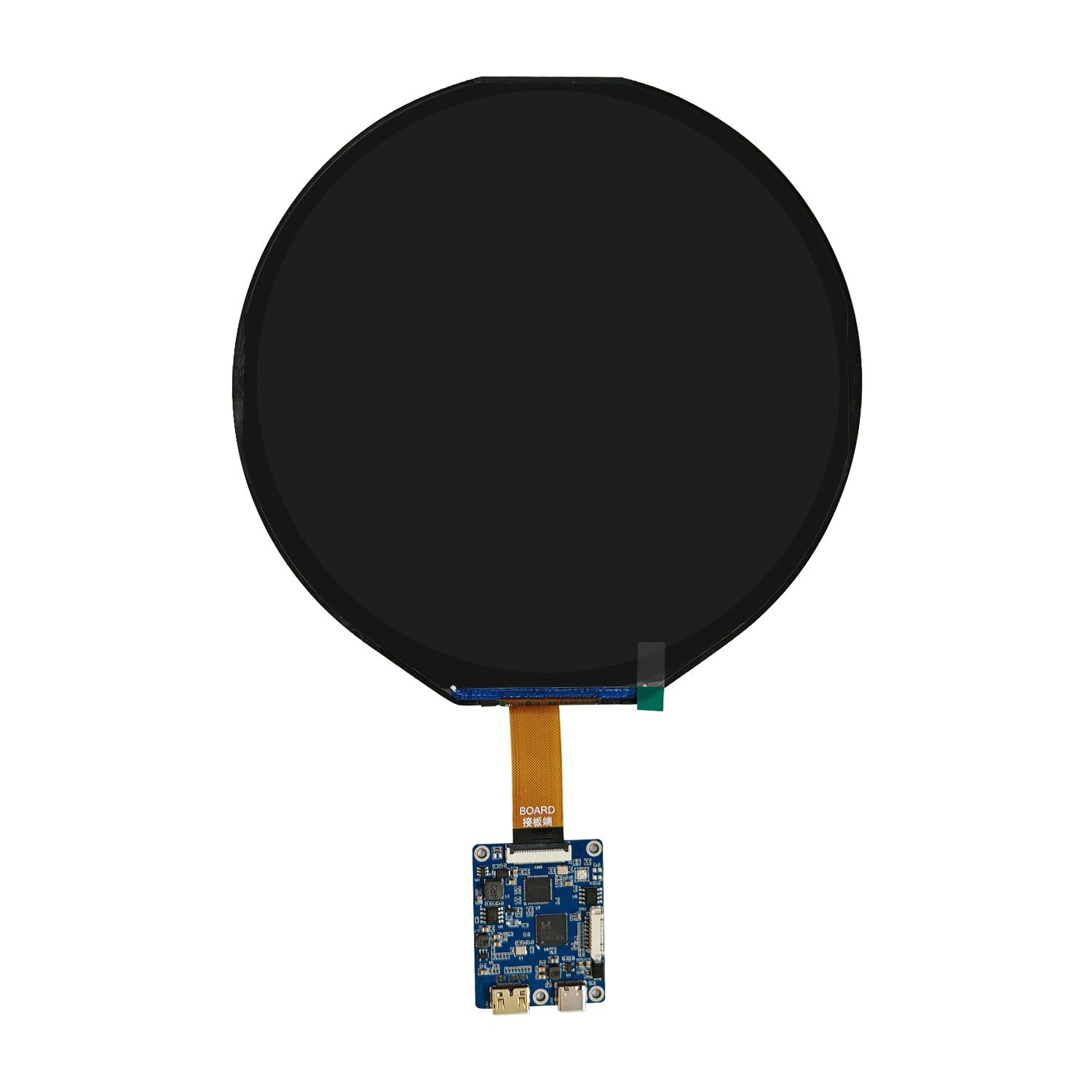

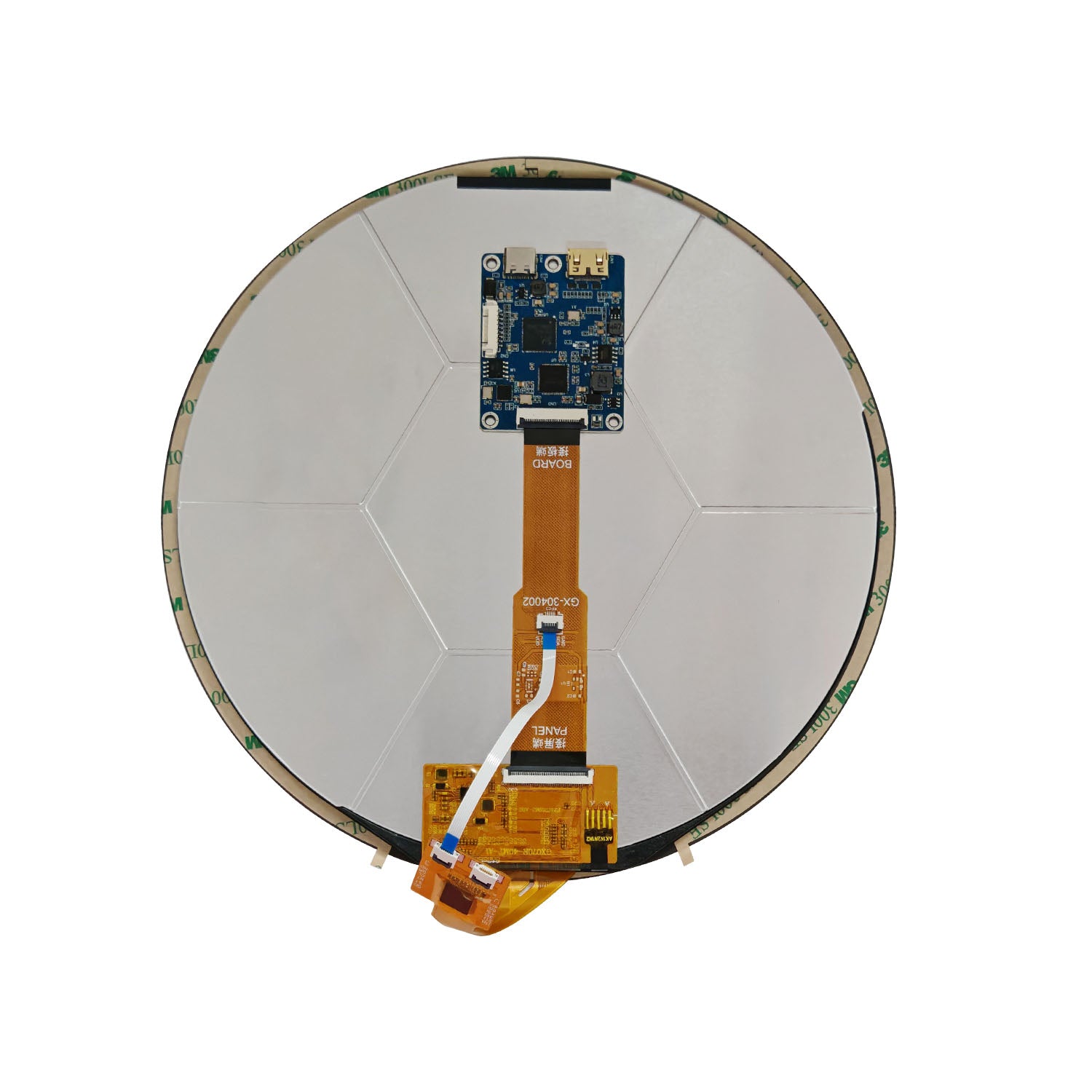

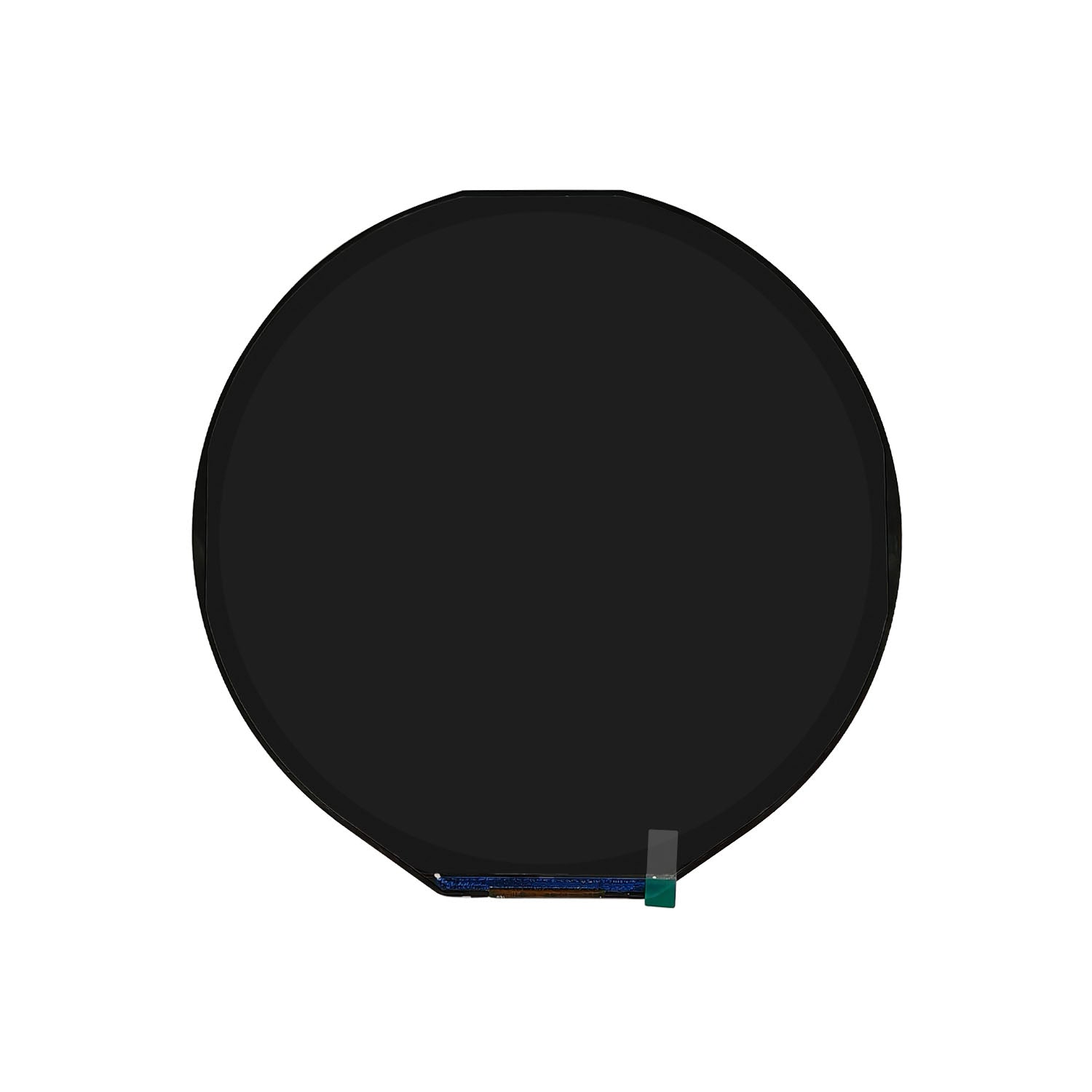

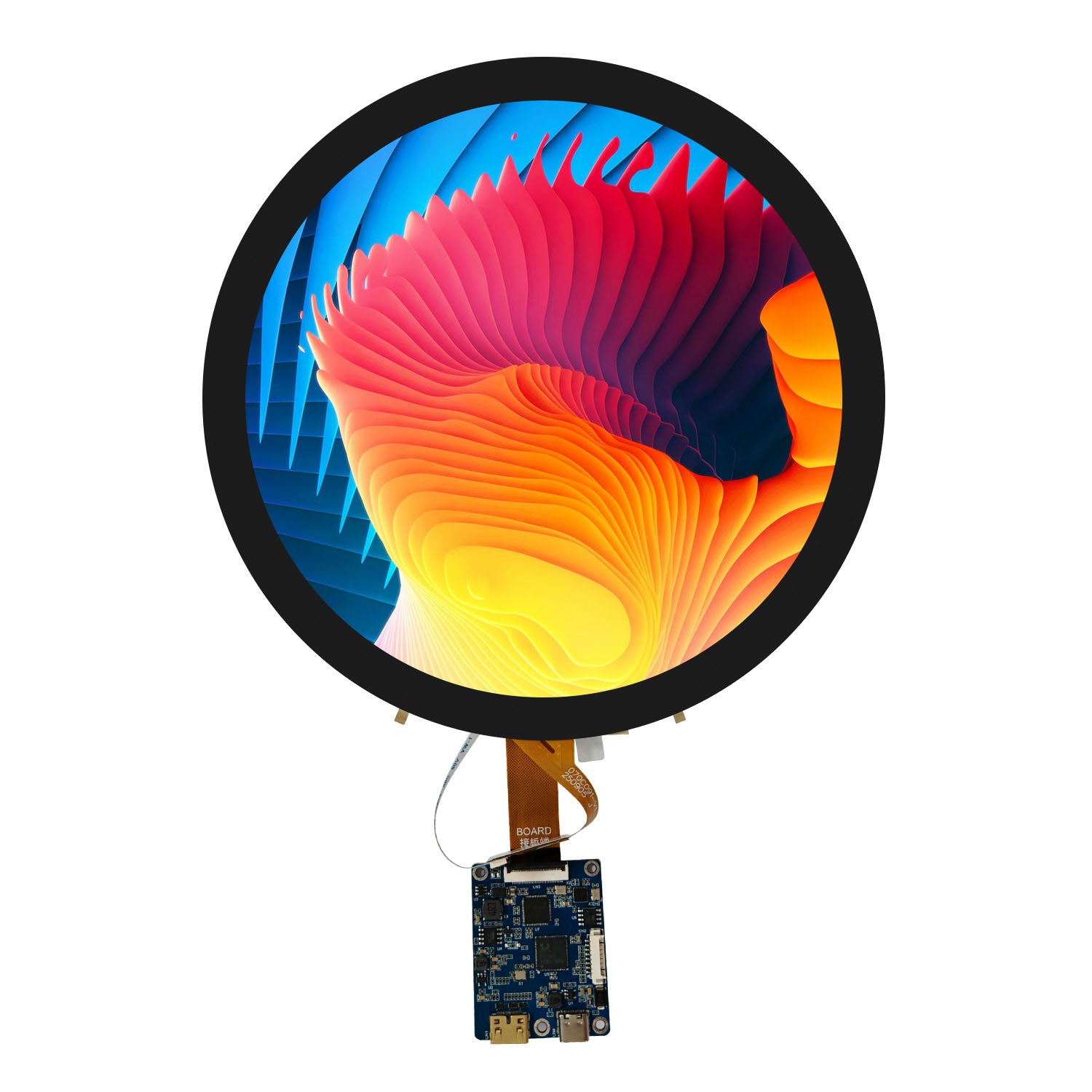

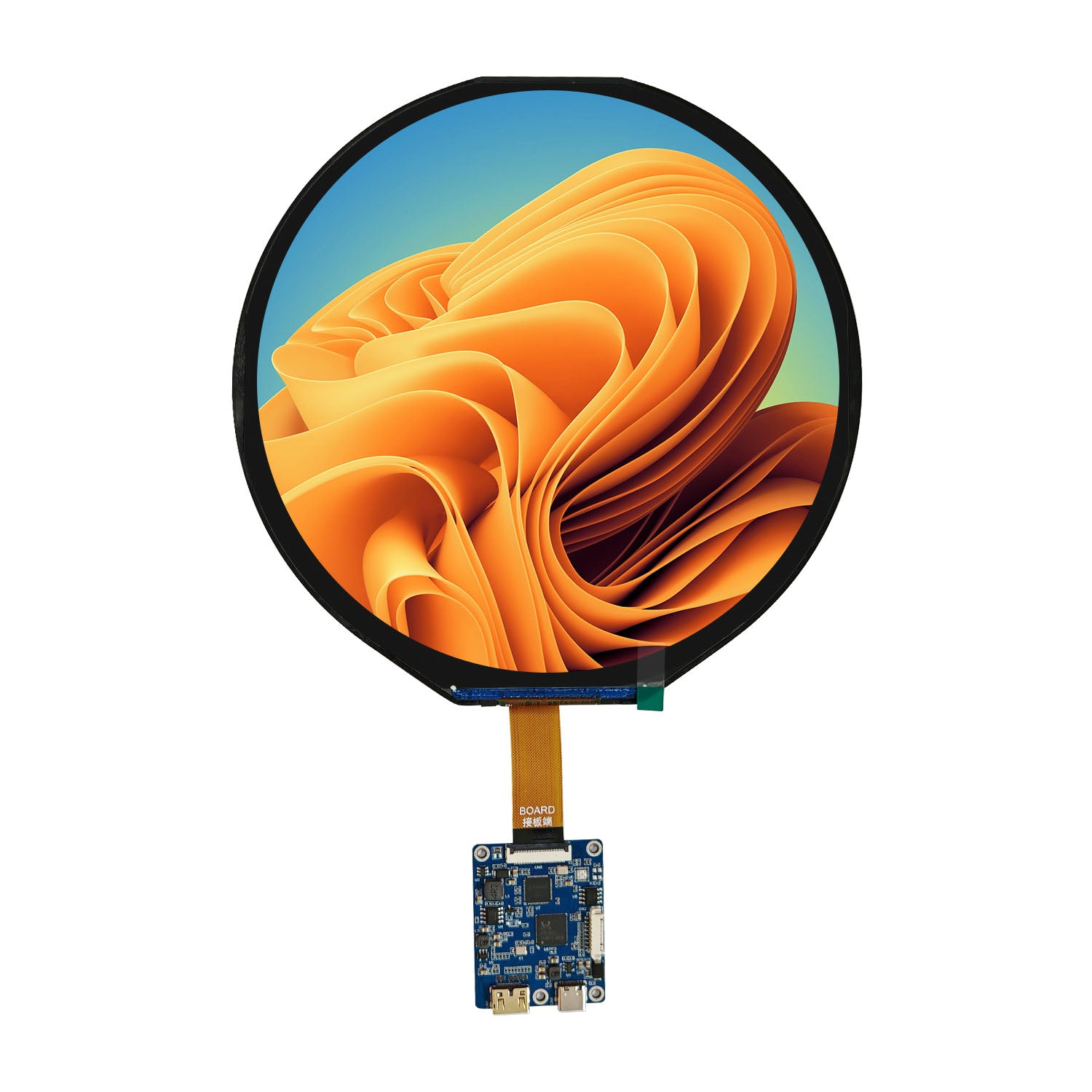

The 7 inch round TFT display (with/out touch function)Delivering an ultra-crisp1080x1080Full HD resolution, this circular screen offers perfect pixel density and stunningly vivid graphics. Equipped with a responsive capacitive touchscreen and a high-speed MIPI DSI interface, Embedding driver ic of FL5893DC and this MIPI Circle screen module is engineered for next-generation interactive devices, there is HDMI driver board available for you demo if you need.
Specification
| Item | Specification |
|---|---|
| Model No. | HT070R-40MT-A1 |
| Display Size | 7.0 inch (round) |
| Display Mode | Normally black, free viewing angle |
| Resolution | 1080 (RGB) × 1080 |
| Pixel Pitch | 0.1644 × 0.1644 mm |
| Pixel Arrangement | RGB vertical stripe |
| Active Area | 177.55 × 177.55 mm |
| Module Outline | 192.75 (H) × 191.58 (V) × 4.75 (D) mm |
| Colour Depth | 16.7M colours |
| Driver IC | FL5893DC |
| Interface | MIPI-DSI |
| Backlight | White LED |
| Luminance | 900 cd/m² (typ.) |
| Contrast Ratio | 1200:1 |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
Key Features
Ultra-HD 1080x1080 High Pixel Density: Designed with a true circular active area, offering crisp, sharp graphics and text rendering without any pixelation on dials or customized UI layouts.
IPS All-Round Free Viewing Angle (180°): Features advanced IPS panel technology, ensuring vivid color reproduction and consistent contrast even when viewed from extreme automotive or desktop angles.
MIPI DSI High-Speed Interface: Provides excellent bandwidth for high refresh rates and low power consumption, making it highly compatible with modern high-performance microcontrollers and graphics processors.
Integrated Capacitive Multi-Touch Screen: Built-in responsive on-cell/PCAP touch panel allows smooth gesture control and seamless user interaction for smart dashboards and knobs.
Industrial-Grade Reliability: Supports a wide operating temperature range from -20℃~ +70℃, perfect for demanding environments such as motorcycle speedometers, marine instruments, and smart automation systems.
Slim & Compact Design: The ultra-thin profile allows engineers and makers to fit the display into tight enclosures, circular enclosures, or PC custom water-cooling modding cases effortlessly.
