12.6 inch AMOLED Display 1200x2560 MIPI OLED Module for Raspberry Pi Laptop
Description
This 12.6 inch AMOLED Display Module with 2.5K high resolution of 1200x2560 and 440nits high brightness, it supports MIPI interface and Embedding driver is of RM69380 (COF) / RM692E6...

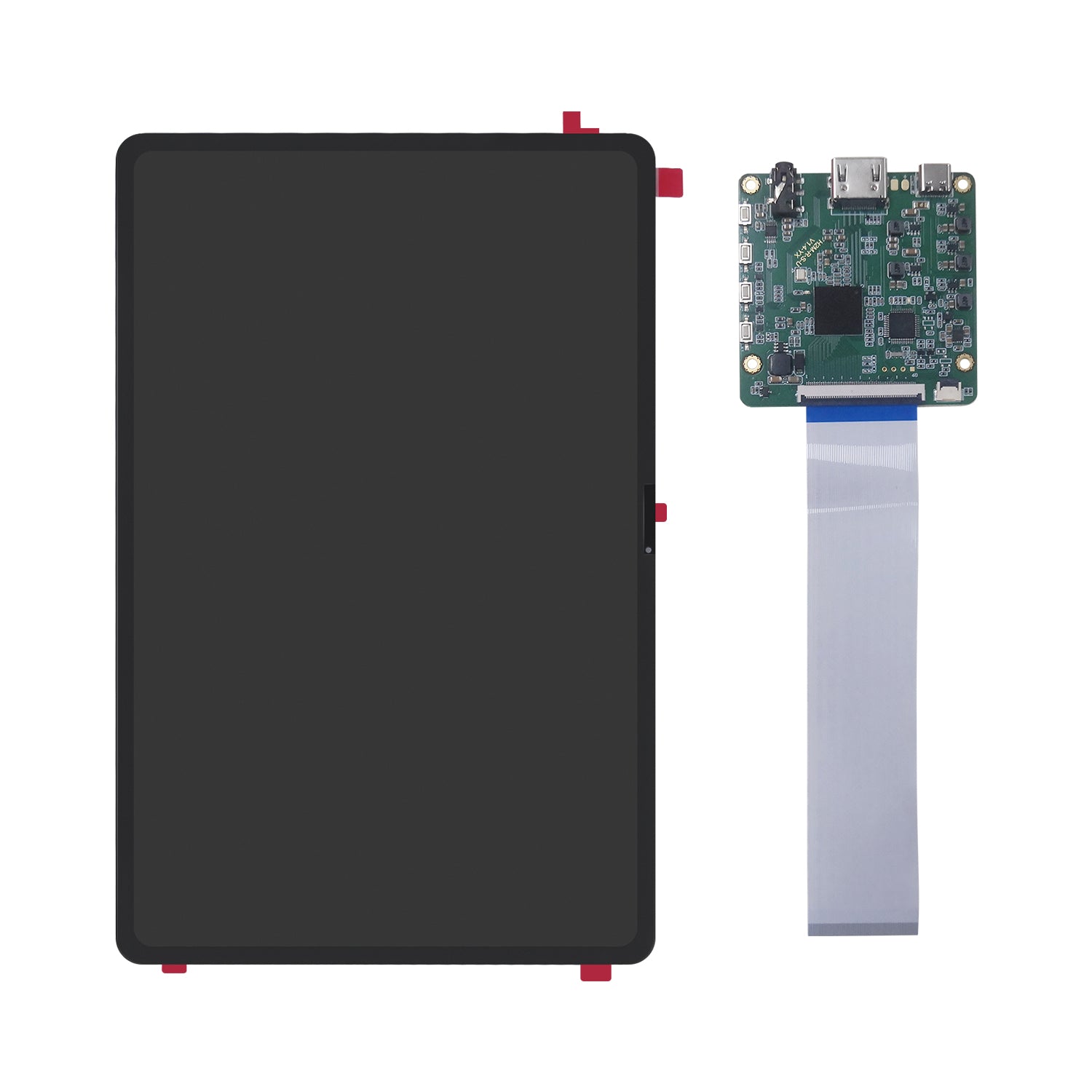

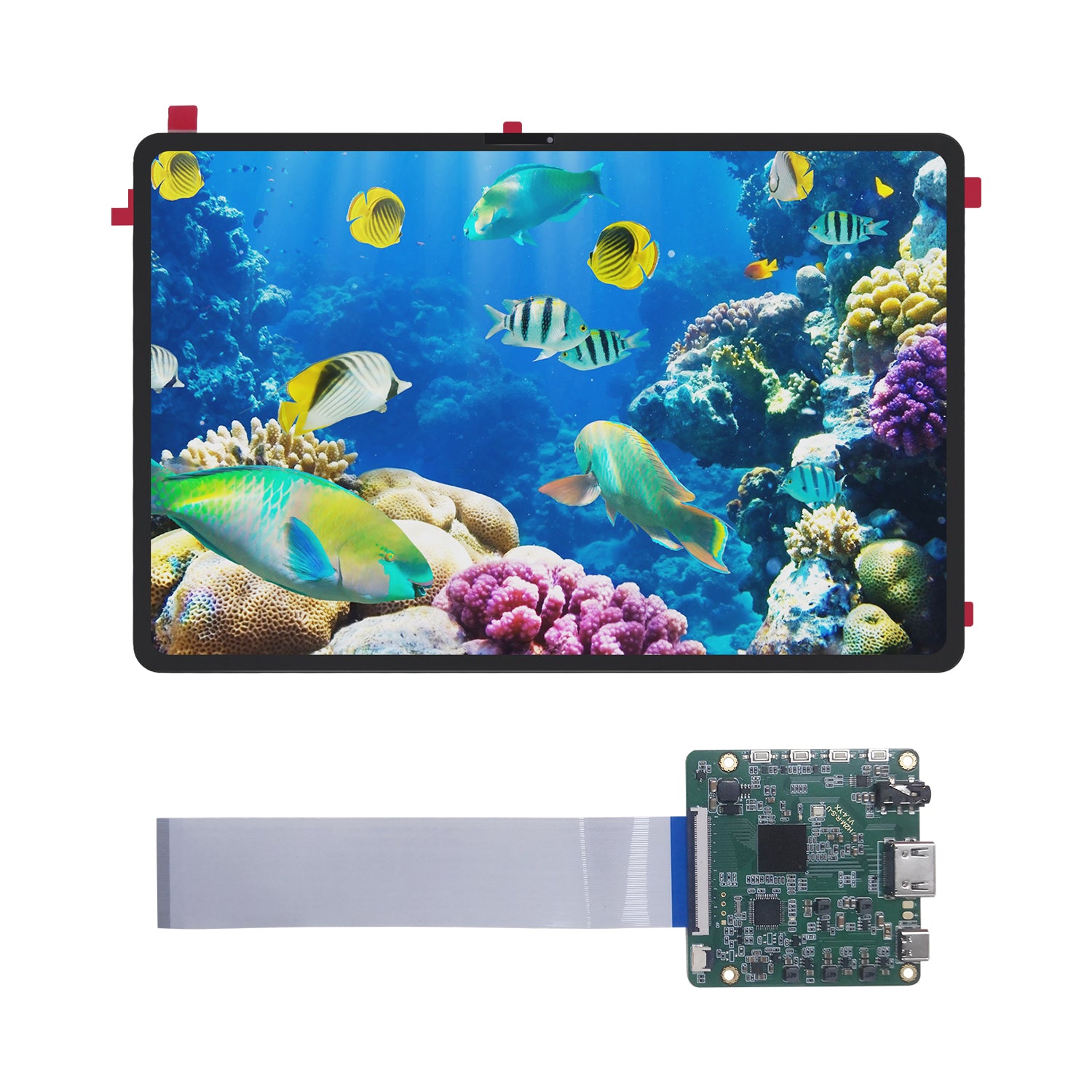

This MIPI OLED display Module is with touch function and has HDMI driver board, which you can directly use it for your Raspberry Pi，Portable Monitors，DIY Hardware Projects，PC Case Modding，Laptop
Specification
| Parameter | Specification |
|---|---|
| Display Size | 12.6 Inch |
| Display Mode | Rigid AMOLED |
| Resolution | 1200RGB × 2560 |
| Pixel Arrangement | Real RGB |
| Interface | MIPI 4 Lanes |
| Driver IC | RM69380 (COF) / RM692E6 |
| Color Depth | 16.7M Colors (RGB × 8bits) |
| Brightness | 440 cd/m² |
| Contrast Ratio | 100000:1 |
| Refresh Rate | 60Hz |
| Viewing Direction | Full Viewing Angle |
| Outline Dimension | 275.411 × 175.232 × 0.6 mm |
| Active Area | 271.4112 × 169.632 mm |
| Pixel Pitch | 106.02 × 106.02 μm |
| Pin Number | 51 Pins |
| Touch Panel | Yes |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
Key Features
Stunning AMOLED Technology:Enjoy true blacks, infinite contrast ratios, and exceptional color accuracy compared to traditional LCDs.
2K High Resolution:The 1200x2560 pixel density ensures crisp text and detailed graphics, making it ideal for secondary displays or sub-monitors.
Wide Compatibility:Easily integrates with hardware like Raspberry Pi, mini PCs, laptops, and custom embedded systems (please check controller board compatibility).
Slim & Lightweight:Designed with a minimal footprint, making it perfect for custom DIY portable monitors or PC case modding.
