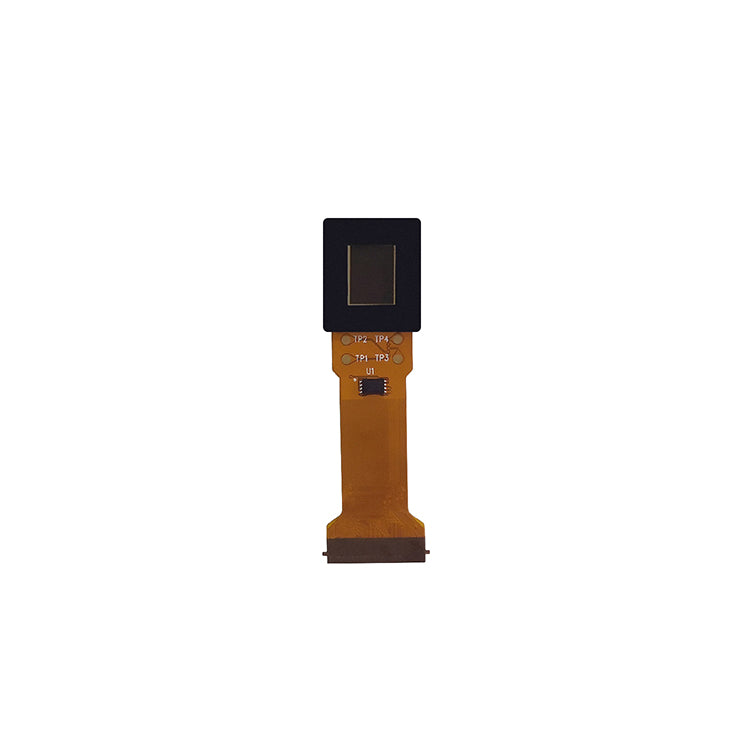

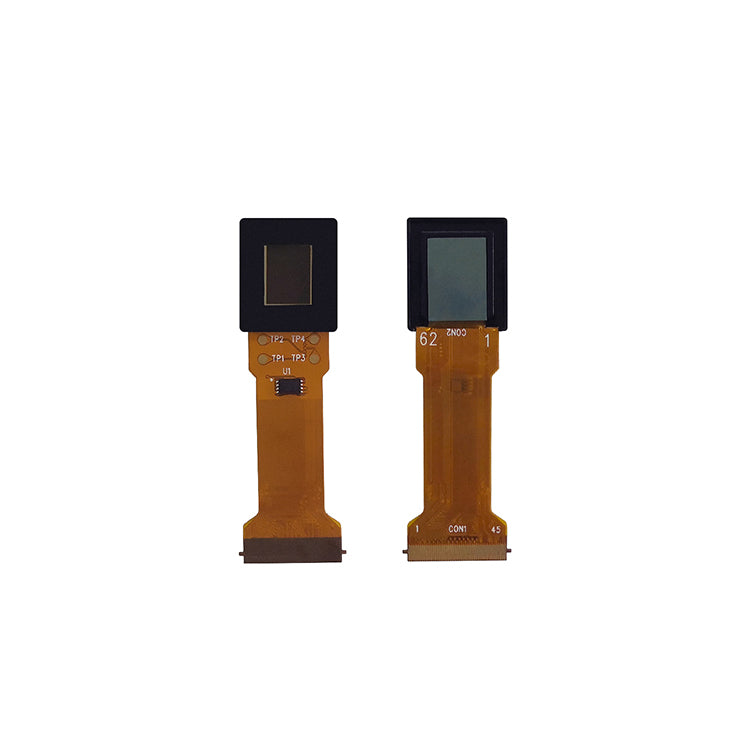

0.39 inch 1024x768 Micro OLED display for AR/VR
HICENDA'S 039S02 1024×768 micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface. The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface. The 039S02 product has high contrast, high consistency and highlight performance.
| Display Type: | Micro-oled display |
| Display Mode: | Passive Matrix |
| Model Number: |
039S02
|
| Diagonal Screen size: | 0.39 Inch |
| Interface: |
parallel RGB 24-bit/YCbCr 16-bit input |
| Number of Pixels: |
1024 (RGB) × 768 |
| Panel Size: |
13.80 (H) ×48.08(V) ×2.15(Depth) (mm)
|
| Active Area: |
7.83 (H) × 5.91 (V) (mm)
|
|
Weight: |
TBD |
|
Operating Temperature: |
-10~70° |
